Occam’s Racer Endplate Test

In this article I take a deep dive into endplates: why we use them, various design considerations, and then testing different endplates in a wind tunnel. I asked several endplate manufacturers to play ball. Some declined, some ignored, but I was able to secure a good batch for testing, and then borrowed or made what I couldn’t acquire. Across my various trips to the wind tunnel, I’ve now tested over 20 endplates, and this article is the first time I’ve put all that data into one place.

Because these tests cover a few trips to the wind tunnel, I’ll list details about the car and wing each endplate was used on. I always use a standard 12×9 endplate as the basis for the comparisons, and I try to be as scientific as possible.

There’s a lot to cover, let’s get started.

  • Wings need endplates
  • You won’t read this in a magazine
  • Endplates by the inch
  • 144 square-inch shapes
  • Aviation-inspired experiments
  • CFD-designed endplates
  • 9 Lives Racing endplates
  • Yeti Racecraft endplates
  • Miscellaneous endplates
  • Conclusions
  • Side force and center of pressure

Wings need endplates

Endplates improve a wing’s performance, but there are other reasons we use them.

  1. Wing performance – According to Simon McBeath (Competition Car Downforce), wings without endplates lose up to 30% of their performance.
  2. Stability – Moving the center of pressure rearwards makes the car more stable.
  3. Structure – Endplates can be incorporated into the structure of the wing itself, and in a dual-element wing, provide the mounting points and adjustments for the upper wing.
  4. Gamesmanship – Endplates hide the airfoil shape; it’s always good to keep your competitors guessing. Fancy endplates also distract competitors from more important things on your car.
  5. Personalization – Endplates look cool, which is a minor point for some, but the entire point of aero, for others.

In this article I’m mostly concerned with point 1, and to a lesser extent point 2. So let’s jump directly into how endplates affect car performance.

Wings create downforce via the pressure differential between the upper and lower surfaces. At the wing tips, that pressure differential creates a vortex as the car moves forward, because the high-pressure top side wants to move around to the low-pressure bottom side.

Endplates provide a physical barrier, holding the air at the ends of the wing, rather than letting it spill over the sides. This fools the air into thinking the wing is longer (a higher aspect ratio). Larger endplates are better at blocking the air, and theoretically should provide better performance.

Wingtip vortex with endplate.

You can calculate the benefit of a simple rectangular endplate on a 2D wing using the formula AR = AR_actual (1 + (1.9 * h/b)). Mathematically, this means that aspect ratio (AR) is proportionate to the size of the endplate, or in plainer terms, the larger the endplate, the more it reduces drag and increases downforce.

In reality, I haven’t found that the math works out. In the wind tunnel, changing the size of a rectangular endplate doesn’t get me both drag reduction and more downforce, I get more of both or less of both.

That math formula is for rectangles, and rectangles are boring. Endplates can, and should, be sized and shaped to a specific airfoil. Every airfoil has a different shape and area of its high- and low-pressure regions, and most motorsports wings have a low pressure zone that extends very low and in front of the wing.

The low-pressure region extends in front of and below the wing. S1223 shown.

As you probably know, the low pressure side is much more important than the high pressure side. Wings make about 70% of their downforce from suction, and so it’s the underside of a car wing that matters the most. This is why endplates extend further below the wing than they do on top, and it follows that deeper endplates should make more downforce.

To gain even more downforce, you can add a small Gurney flap to the trailing edge of the endplate, to kick air sideways. This makes the wing seem like it has more span. You can also bend the endplate such that some air is deflected upwards, which creates downforce.

In addition to the size, shape, and bends on the endplate, you can add vents. Vents are usually in the form of slits or notches cut in the top of the endplate, or at the trailing edge. Although sometimes you see vents on the bottom of the endplate, mixing outside air into the wake. Regardless of where they are, the point of venting is to bleed some of the high pressure air to the low pressure side. This may seem counterintuitive, because lowering the pressure differential reduces downforce. But, if done cleverly, venting can reduce the wingtip vortex, and thereby reduce drag, while not losing too much downforce in the process.

In a nutshell, or perhaps a better idiom is, in this shell game, that’s what endplate design is: trying to get something for nothing. Either you’re trying to get drag reduction without losing downforce, or trying to get downforce without increasing drag.

So how do these different shapes and sizes combine with cuts, vents, Gurney flaps, and bends? Well, that’s what we’re here to find out. Before we dive into it, here are a few things to keep in mind:

  • All values are listed at 100 mph. The A2 wind tunnel operates at 85 mph, but I use 100 mph as a standard convention (as does Simon McBeath, AJ Hartman, and other people smarter than me).
  • A gallon of gas is about 6.2 lbs, and so if you see an endplate that makes that much additional downforce, an extra gallon of gas in the tank is about the same amount of additional grip.
  • One horsepower is about 7 lbs of drag (on the cars I measured here), and so an endplate that reduces drag by say 3.6 lbs gained about .5 hp at 100 mph, which is negligible.

You won’t read this in a magazine

I think I’m the first person to publish an exhaustive endplate test with wind tunnel data. It begs the question, why me? Or rather, why haven’t I read about this already in a magazine? Car magazines will dyno test different air filters, intakes, exhausts, motor oils, etc. They’ll rent track time to test a new 200TW tire as soon as it comes out. But aero testing? Notsomuch.

Some of the endplates I tested.

But people also want to know about aero, and one of the most intriguing items has got to be endplates! They are cheap, easy to install, and come in a variety of shapes and sizes. Most endplates are “CFD designed” and if we believe the wild (and unsubstantiated) claims of increased downforce and/or drag reduction, they are a great bang for the buck. Which is best?

I can’t say for sure why car magazines won’t test things like this, but it seems like a combination of the following:

  • Lack of interest – If you search the archives in GRM, Road & Track, or any other rag outside of Racecar Engineering (which stands head and shoulders above everything else in this regard), you’ll see precious few articles on aerodynamics. I can count them on one hand.
  • Conflict of interest – Manufacturers place ads in magazines, which puts food on the table. Comparative test only works out for the winner. So if Brand X is a regular advertiser and comes in last place, that’s difficult for the magazine. In the end, it’s probably better to write articles on vinyl wrapping, or HID headlights, or whatever else passes for motorsports these days.
  • Lack of knowledge – Most car magazines buy parts off the shelf, investigate nothing, and blindly trust manufacturers claims. On the Dunning-Kruger of Aerodynamics, car magazines are firmly in the FanBoi stage: high confidence, low knowledge.

So that’s why you’re not reading about endplate testing in a magazine. But at the price the aftermarket charges for a piece of aluminum, consumers deserve to know what different endplates do for drag and downforce, and ultimately, if they are worth it.

I guess the next question is, if not them, then why me? Why have I taken it upon myself to be the Consumer Reports of aerodynamics? Blame BBTI.

This would be a great time to hit the Buy Me a Coffee link, which supports true investigative journalism, and actual wind tunnel data. The money all goes back into more wind tunnel testing, which results in more articles on this site. Thanks for the support, let’s keep this going.

Endplates by the inch

One of the websites that has inspired my aero research, and this endplate test in particular, is Ballistics by the Inch. BBTI tests the velocity of different pistol and rifle bullets from different length gun barrels. They start with a long barrel, and then progressively cut 1” off it, fire a bunch of rounds to measure and average velocity, and repeat. When the barrel is reduced to a 2″ stub, they move onto another caliber and start over with a full length barrel.

The results show that some calibers, like .223 and 357 Magnum, get much better with a longer barrel, while some, like 38 Special and 45ACP, don’t. This is all down to the propellant (gunpowder) ammo factories use, so you could handload for different results, but it’s still great info for anyone buying off the shelf ammo.

Key takeaways are that short-barrel firearms using slower burning powders produce more flash and noise, but not a lot more velocity. If you have a snub-nosed 357 Magnum, you’re better off feeding it 38 Specials. Conversely, slower burning powders are better in longer barrels. So if you have a 6” 357 Magnum revolver, it has twice the muzzle energy of a 3” barrel of the same.

Good stuff. Useful knowledge. They’ve tested 25 calibers, real firearms vs bench barrels, cylinder gaps, and rifling. The ammo cost alone must have been staggering. Who are the people behind these tests? Are they ammunition manufacturers? Guns and Ammo journalist? Nope. Just a couple of guys who did it for science. They were willing to pay for crates of ammo, destroy a lot of barrels, and spend hours on laborious experiments.

I was doubly inspired by BBTI, not only for doing the Lord’s work on their dime, but also by the whole “let’s keep cutting it shorter and see what happens” methodology.

I wanted to see what would happen if I did that with endplates, but in reverse. So that’s what these first endplate tests are: start with a small rectangular endplate and get progressively larger. I don’t have the time (money) to dick around with 1″ increments like BBTI did, so I decided to make end plates at 3″ intervals: 6″, 9″, 12″, 15”, and 18”.

I didn’t start with a 3″ endplate, as that would have been only half an inch depth under the wing, and that seemed silly based on the size of the low-pressure region. And I didn’t go larger than 18″, for a couple reasons.

  • I use recycled street signs, and anything over 18″ long means cutting into a 24″x24″ or larger sign, which is wasteful.
  • I felt that if I extended the endplate over 18″, they might bend inward at the bottom. The aluminum signs I use are quite sturdy, but I’ve seen this bending on my buddy Bronson’s car, and it looks like anti-performance.
  • Very large endplates are going to have considerably more side force. Meaning that they would move the center of pressure rearward, and that might have a greater effect on handling than whatever the endplate is doing to the wing’s performance. That’s a separate topic, and difficult to discuss without knowing the weight balance and silhouette of the car in question.

Simon McBeath published a similar test in Racecar Engineering, using CFD. He started with a small rectangular endplate and then increased the depth of the endplate by 50mm each time. He stumbled upon magical in-between size (125mm IIRC), which outperformed all the others. Keep this in mind, because it kinda happens later in the test, as well.

I won’t republish Simon’s results here, subscribe to Racecar Engineering and you can find that article in their archives. If you want to cross-list my data with Simon’s, note that Simon measured the depth below the wing, and I use the total endplate height. My endplate depth is about 2.5″ less than the total height, so a 6″ end plate has about 3.5″ of depth.

Note that I did the rectangular endplate test on my Veloster N with a 71″ Wing-Logic MSHD. I used reverse swan neck wing mounts mounted at roof height, with the usual quarter-chord overlap over the rear hatch. I feel the wing was high and wide enough that the body shape didn’t make much difference on the endplate performance, but it’s always worth noting that the car influences the wing and endplate.

The following table is listed in pounds (I’m embarrassed that I can’t think in metric; I’m too old to make the switch). Positive values are bad, negative values are good: less drag or less lift (= downforce). I list the total Lift, which is the lift at the front (Lift F) and rear (Lift R) added together. Rear downforce and drag can lift the front of the car, and it’s interesting to see that relationship here. I’ve also included a column for the L/D ratio the car, and how that changed with each endplate.

EndplateDragLiftLift FLift RCar L/D
12×6-0.51.501.50.88
12×900000.88
12×10.5*1.1-0.80.35-1.150.88
12×122.2-1.60.7-2.30.88
12×15*4.7-2.551.15-3.70.88
12×187.2-3.51.6-5.10.87
Rectangular endplates.

Let’s take a look at that results in detail:

  • 12×6 – The smallest rectangular endplate reduced drag by .5 lbs and lost 1.5 lbs of downforce. Not a great tradeoff, but also these are tiny numbers, and if you have 6″ endplates now, there’s no reason to “upgrade” them.
  • 12×9 – This is a street sign cut in half, and is the endplate I put on every wing, to baseline the testing of other endplates. Its values are all zero, because everything else is being compared to this one.
  • 12×10.5* – I didn’t test this size, the values in the table are an average between 9″ and 12″, which is a fair assumption given the data. I included this in-between size because it’s the same dimensions as the 9 Lives Racing Megga endplate, which, if we believe the advertisement, is supposed to increase downforce by 10%. I’ll be kind to 9 Lives Racing and compare the Megga-sized endplate to the 6″ rectangle, and you can see the larger endplate increased downforce by 2.3 lbs. Given that the wing is making about 260 lbs of downforce, this is less than 1% more downforce than a 6″ endplate. Claiming 10% more downforce is 1000% wrong.
  • 12×12 -This is the maximum area allowed in NASA Super Touring, and I’ll go into more detail about that in the following section. It makes 1.6 lbs more downforce than the 9″, and trades that for 2.2 lbs more drag. These are nothing numbers, which is why the L/D ratio of the car didn’t change.
  • 12×15* – I didn’t test this size for financial reasons, the values in the table are an average between 12″ and 18″. This seems a fair assumption based on how little things change, and there’s no reason to use this size IRL.
  • 12×18″ – This is a full-length street sign, and made the most downforce, but also added 7.2 lbs of drag, which is equivalent to losing about 1 hp at 100 mph. The endplates bent inward from the suction below the wing, and this can’t be good, because this is the only endplate that changed the L/D ratio of the car, and it did so in the wrong direction. The A2 wind tunnel operates at 85 mph, and so at a higher speed, you’d see even more bending, and probably less efficiency.
You can see the 18″ endplate bending inward at the bottom. Some of this may be influenced by the location of the wing and body shape. For aerodynamic efficiency, the 18″ endplate was worse than all of the others.

After reviewing all of this information, it appears that every 3″ of depth adds about 1.5 lbs of downforce, but it also adds proportionately more drag. If we remove the 18″ endplate from the test, I can conclude that different sized rectangular endplates result in the same L/D of the vehicle.

In my testing, I found two exceptions to the above statement:

  • We tested a 300×300 mm endplate (close enough to 12×12) endplate on Raul’s BRZ with a 68″ PCI wing, and the large endplate lost over 20 lbs downforce compared to a standard-sized flat rectangle. For whatever reason, on this wing, on this car, bigger was not better; it was quite a bit worse. I didn’t include this data in the preceding table, because I didn’t test my street sign endplate on his car, but something a little different in size. Anyway, avoid this size on a PCI wing.
  • In this experiment, I didn’t find a rectangular endplate that was too small, but later in this article, the trapezoidal Wing-Logic endplate also underperformed compared to a 6″ rectangle.

Both of these were outside the Goldilocks zone of “not too big, not too small” and if I were to make a rule of thumb about rectangular endplates, I’d say make them about a chord in height. If you have a 9″ wing, then a 9″ tall endplate is about the right size. Unless you stumble upon some magical size, then going significantly over or under a chord’s height could be a lot worse.

300×300 endplate was too large and oddly lost a lot of downforce compared to a smaller endplate.

144 sq-in shapes

NASA Super Touring rules specify a 144 square inch limit for endplates. Go over that size, and your car is illegal. The rule leads people to believe that bigger is better, but as we just saw on Raul’s PCI wing, bigger is sometimes a lot worse.

It begs the question, why did NASA create this rule? If you look at the rest of the rulebook and the aero values, it’s pretty obvious that guessing at aerodynamic performance, and not measuring it, is their modus operandi.

But let’s put that all aside for a moment and say that you want to maximize your endplate size for the NASA ST rules, the easiest way to do that is a square 12″ x 12″ endplate. But there are other size rectangles that result in the same 144 square inches. Indeed, there are other shapes that result in the same area, but that extend further below the wing. Theoretically, this should produce more downforce. Maybe we can get something for nothing?

I drew up a few endplate designs and sent them over to Tim Miller, and he suggested I try a delta shape with a long axis of 16″. This came out to 142 square inches, but close enough to 144.

I compared C to E: similar area, different shape.

Now you might be wondering which way the end plate faces? It’s a good question, and so I tested it both ways, delta forward (with the taper facing forward) and delta rear (with more surface area forward).

Note that the car, wing, and position of the wing are all the same as in the rectangular endplate tests. But this time I’m using the 12×12 as the basis, because it’s all about the max NASA size.

EndplateDragLiftLift FLift RCar L/D
12×1200000.88
Delta forward2.1-1.6-0.2-1.40.88
Delta rear1.9-2.50.4-2.90.88
144 square inch shapes compared
  • 12×12 – This is the basis for the comparison, and so all its values are zero.
  • Delta forward – The endplate was placed such that the tapered edge faced forward, with more surface area to the rear. This made 1.6 lbs more downforce than the 12×12, but also more drag. End result, no discernable difference.
  • Delta rearward – The same endplate flipped around so that it had more surface area forward, made more downforce. This makes sense, since much of the low-pressure region is ahead of and below the leading edge of the wing. What’s surprising is this direction also had less drag than the other way around. I’ve been saying this for years, that endplates should be designed with more surface area forward, and I feel vindicated with this evidence. But also, these are such small numbers that it didn’t change the L/D ratio of the car, and whatever point I was trying to prove is pointless.
This is the delta forward direction.

At this juncture I can conclude that that any rectangular endplate from 6″ to 12″ tall, and probably any 2D shape, will result in the vehicle having the same aerodynamic efficiency. Unless you go too small or too large, or somehow luck into a size that has magical abilities, endplates of different sizes and shapes are just tiny tradeoffs between drag and downforce, and all of them amount to the same aerodynamic efficiency.

So if all 2D shapes and sizes are the same, what about 3D shapes?

Aviation-inspired experiments

I wanted to try a couple different endplate ideas based on things I’ve seen on aviation wings. These tests were on the Veloster with the 71″ MSHD, reverse swan necks, etc.

  • Airfoil shape – The first experiment was to use an endplate that’s shaped like an airfoil, with a thick leading edge, tapering back to a sharp trailing edge. I made this out of foam and covered it with tape, and then stuck it to a 12×6 endplate. I eyeballed the shape, it was probably close to a Clark-Y. Theoretically, this should work better when the wing is in yaw (going around a corner), as the rounded leading edge should have better flow attachment, and the shape of the airfoil should kick air a little more sideways, making the wing seem like it has a higher aspect ratio.
  • Fillets – The other thing I wanted to try was to reduce the intersection drag between the endplate and the wing. You see this on airplane wings, at the wing root. That 90-degree corner where they meet is a place where flow separates, and radiusing that area should help flow attachment. I had my friend Alyssa 3D print me some plastic fillets with a radius.
Rounded fillet idea was better on paper than in the wind tunnel.

While both of these ideas sounded great in theory, neither of them worked out.

EndplateDragLiftLift FLift RCar L/D
12×6 plain00000.88
12×6 airfoil-1.326.88.8180.79
12×6 fillet-4.824.79.7150.81
  • 12×6 – This is the plain rectangle I used in the endplates by the inch test. All of its values are zero, because the other endplates are based on this.
  • Airfoil – Making the endplate thicker and shaped like an airfoil reduced drag, but it also lost 26.8 lbs of downforce compared to the unadorned street sign. The aerodynamic efficiency took a dive, down to .79. Ouch.
  • Fillet – The fillet reduced drag even more, but downforce went down by almost 25 lbs. For a low-drag application like an airplane, where maybe lift is not the primary concern for long distances, perhaps this is a good idea. But for a car wing, not at all.

In retrospect, the airfoil shape was probably too thick, and reduced the effective length of the wing by 3″, which was the thickness of the airfoil, and about 4.5% of the span. Total downforce went down by 11.5%, which means there was still an unfavorable tradeoff between drag reduction and downforce. The airfoil shape would be most effective when placed in yaw, but I didn’t test that. There may be some benefit to thickening and rounding the leading edge, but not at the expense of reducing the area under the wing!

The fillet under the wing also shortened the effective wing length, and that’s probably why it lost downforce. It’s a similar problem to the airfoil shape. If I redesigned this, I’d radius only the trailing surfaces after the thickest part of the wing.

But neither one of these is a game changer, and in fact both were utter crap. The theme of “you get drag reduction or downforce, but not both” remains true.

CFD-designed end plates

My guesses at improving endplate design were interesting but not fruitful. Taking my ideas and shaping them into reality, and then testing them in a wind tunnel, is a slow and expensive process. People smarter than me do their development in CFD. This allows them to try many different iterations on the computer, and arrive at an acceptable tradeoff between drag and downforce.

But there are three common problems I see with the CFD approach.

  • Testing – Nobody seems to test their CFD-designed endplates in a wind tunnel. They think (or rather, want you to believe) the CFD is valid, when in fact it’s never been calibrated by putting it into a feedback loop. “CFD-proof” isn’t proof; if you see those words you are being scammed.
  • Free stream – Most of the CFD I’ve seen is done in free stream. The fact is, endplates should be designed not only for a particular wing, but for a specific car, with an exact wing size and wing location. If you test wings in free stream, meaning that the wing is suspended in air, but not attached to the car, you can absolutely design the most efficient endplate for any given wing. But when you put the wing on the car, the game changes entirely. Developing endplates (or any aero device) in free stream CFD and applying that to all cars is utter bullshit.
  • Wing efficiency vs vehicle efficiency – Cars are large and draggy, and have shitty aerodynamics. In order to improve the L/D ratio, you need to make huge changes to downforce, not small changes to drag. Adding more wing angle makes the wing less efficient, but it makes the vehicle more efficient.

But if CFD isn’t real, the wind tunnel isn’t real either. In the real world we have winds from every direction, cars in front of us, and in the situations where when we want the most downforce, in a corner, the car is in yaw.

I didn’t test those things, and they are certainly important. So as much as I might malign CFD for giving us false hopes, I’m also acknowledging that wind tunnel testing isn’t 100% accurate, either. We are all doing the best we can, with the information we have available.

I tested CFD-designed end plates from Yeti Racecraft and 9 Lives Racing, which I cover below. At the wind tunnel we also tested some CFD-designed top secret endplates I can’t show any pictures of. The results were exactly in line with all of the other CFD-designed endplates, with their fancy vents, cuts, and shapes, and so I’ll wrap up that in the final conclusion.

9 Lives Racing

9 Lives Racing sells four endplates, three rectangles of different sizes and a CFD-designed shape that has a couple cuts and a bend in it.

  • The basic endplate measures 10” chord by 8” depth. The wing is positioned at the rear of the endplate, so that the trailing edge of the wing is at the rear edge of the endplate. This puts most of the endplate’s surface area in front of and below the wing, which is proper.
  • The mini endplate looks to be the same as the basic, but with less depth. I didn’t test this one, but I’d guess it performs similarly to the 6” endplate I tested.
  • The MEGGA!! endplate is larger than the basic in both directions, measuring 12” chord and 10.5” depth. I already covered this size in the Endplates by the Inch section.
  • The CFD V2 measures 10.5″ chord by 12” depth with a semi-circular arc cut into the leading edge and a vent cut into the top side. It measures about 115 square-inches, well under the silly 144 square inch NASA Super Touring rule.
  • Years ago there was a CFD V1 endplate, which had the same shape, but without the bend on the trailing edge. Based on the shape of the low pressure region below the wing, this semi-circular cut seems like it would reduce downforce, just the way that the Delta-shaped endplate I tested showed that more area forward was better than more area reaward. Anyway, I tested CFD V1 on a previous trip to the wind tunnel, and I ran it in both directions to test my hypothesis. I’ll include that data in the summary table.

Note that the these endplates were tested on two different cars, my Veloster N with a 55″ 9LR original (Express) wing, and Pete Mink’s Porshe 944 with a 68″ Evo wing. I didn’t include a vehicle L/D ratio column in the table, because I can’t relate it to both cars. In any case, you can probably guess that the vehicle L/D didn’t change much.

EndplateDragLiftLift FLift R
12×9 rectangle0000
9LR Basic0.8-7.21.2-8.3
CFD V21.1-3.7-1-2.7
CFD4.1-1.8-0.8-1
CFD reversed3.5-1.5-0.4-1.1
  • 12×9 – Street sign cut in half, everything here is compared to this.
  • 9LR Basic – What’s super interesting about this endplate is how well it performed compared to the 12×9. It has 2″ less chord and 1″ less depth, and yet it made 7.2 lbs more downforce. Drag went up, which is what happens when you add downforce, but by less than 1 lb. Nevertheless, this is better performance, and if I had to guess, I think it has to do with a) stumbling upon a “magic” size, and b) positioning of the wing on the endplate. On the street sign endplates, I centered the wing fore and aft, but on this endplate, the wing is as far rearward as you can put it. This endplate shows that a proper rectangle is as good, or better, than most anything.
  • CFD V2 – Compared to the Basic endplate, the CFD V2 makes less downforce and more drag. Which is odd, because their advertising claims the CFD V2 makes 10% more downforce and 7% less drag, and it’s actually worse in both directions. But maybe they were comparing that to no endplate at all? In any case, the Basic is better.
  • CFD V1- I tested the first version of the CFD shape on my Veloster, and it made more downforce than the 12×9 street sign, but also more drag. When I reversed the endplate on the wing (the holes didn’t even match up, so the endplate was askew), the numbers were slightly different, but basically the same. This is no surprise, since we saw this already with the Delta-shaped endplates, putting them forward or backward didn’t move the needle. So it’s expected that the same result happened here.
9LR CFD V2 on Pete’s 944

Two things of interest came out of this test, one is that there is sometimes a sprinkle of magic in rectangular endplates, and one size may work slightly better than others. Simon found this in his CFD experiment, and I’ve found the same in this test, both in sizes that work better than they should, and sizes that are quite a bit worse. Now we are only talking about a difference of 7 lbs of downforce at 100 mph, and that wouldn’t change the performance of the car in a way that you’d notice. Still, it’s neat to see this.

The other interesting tidbit is the difference between the CFD original and CFD V2, with the rear bend on it. The rear bend added 2 lbs of downforce and reduced drag by about 3 lbs, and is an obvious improvement. While these are tiny numbers, they are at least going in the right direction. But the Basic rectangular endplate still outperformed both V1 and V2.

Yeti Racecraft

Yeti Racecraft is an aftermarket manufacturer making CFD-designed endplates and other aero parts. Yeti’s Brian Kemerley designs each one specific to an aftermarket wing. Meaning that Brian’s endplate for a PCI wing is a different size and shape as the one he makes for 9 Lives, which is different from the one he designs for Wing-Logic. This makes sense because the pressure distribution is going to be a different size and shape on different wings.

But the endplate shapes aren’t hugely different, they all have the same family resemblance, with more surface area forward than aft. A rectangular endplate forms a vortex on the corners, but Brian’s “swoosh” shape merges two vortices into one, which results in less drag. There are vents cut into the top, to bleed some high pressure air to the low pressure side, and a long tail with a notch in it, presumably to do the same.

I tested this model, both with and without the rear flick at the trailing edge.

Some of the Yeti endplates are flat, and some have a small Gurney flap on the trailing edge. Unlike the 9LR CFD V2 endplate, the Yeti bend is only on about half the trailing edge. In the data below you’ll see that this worked, although I wonder how it would have performed if the lower half had the flick on it, rather than the upper half.

These endplates were all tested on a Porsche 944 with a 68″ 9 Lives Racing Evo wing and their standard wing mounts. As a side note, I helped Pete install the wing mounts and I found them to be well designed and constructed.

EndplateDragLiftLift FLift RCar L/D
12×9 rectangle00000.64
Flat swoosh-0.9-0.1-0.30.30.64
Flick swoosh0.2-40.5-4.60.65
Time Attack5.9-16.75.8-22.50.69
  • 12×9 – Same rectangle, baseline for others.
  • Flat – The swoosh shape, topside vents, and rear notch combined to do… not much. Compared to the basic 12×9 rectangle, the fancy shape had 1 lb less drag and .1 lbs less downforce. These are barely measurable figures, and no better than a generic rectangle, and worse than a 9LR basic.
  • Flick – The same shape with a half-length Gurney flap gains 4 lbs of downforce and .2 lbs of drag. That’s so little drag that we can ignore it, and call it a 1.5% gain in downforce for free. Well, not exactly free since the endplates cost $175, but this is an actual performance gain, not fantasyland. But still the 9LR Basic was better.
  • Time Attack – This endplate has a much larger top vent and a radical double bend at the bottom edge, which scoops air almost like an outboard wing. It made 16.7 lbs of downforce and added 5.9 lbs of drag. That’s a 2.8:1 L/D tradeoff, which is remarkably good. This is slightly better than the L/D you see when adding Gurney flap to a wing.
Yeti Time Attack endplates have a large scoop at the bottom, almost like a mini wing.

I have a knee-jerk reaction against CFD designed endplates, because most of what I’ve seen is an expensive product, supported by misleading claims, and a zero-sum result. But Yeti Racecraft has made at least one endplate that proves Brian can design a CFD endplate that outperforms everything else.

One nit: the description on the Yeti site says this endplate also reduces drag, and while that may be true in the CFD, it’s not true in the wind tunnel. No endplate adds downforce and reduces drag. But what is true is that this is an excellent endplate, that results in better vehicle efficiency than any other endplate I tested. Bravo.

Yeti’s CFD shows how effective that bottom bend is, effectively making the wing seem like it has more span. That it does this with such a favorable L/D ratio is astounding.

Yeti also makes a hybrid shape that combines their basic swoosh shape with a less aggressive bottom bend than the Time Attack. I didn’t test this one, but it probably sits somewhere between their Time Attack and swoosh-flick.

I didn’t test this one, which combines the Yeti swoosh shape with a less aggressive Time Attack bend.

At the end of this article I give each endplate a grade, and the only thing keeping the Yeti Time Attack from getting an A+ is a couple adjustment holes. With an endplate like this, when you adjust the angle of attack on the wing, it also adjusts the angle of the “winglet” on the endplate. So I’d like to see adjustment holes here, so that the endplate can be pivoted a few degrees fore and aft.

Miscellaneous endplates

I’m going to add three more endplates to this discussion, the first is the endplates that come in the box when you buy a Wing-Logic MSHD, the next is the basic 12×9 street sign with a bottom vent, the last is an endplate I made back in 2019.

The Wing-Logic endplate is a 10×5.5 parallelogram. This is the smallest endplate in the test. It doesn’t come pre-drilled, and so I placed the endplate about where I placed the rectangular endplates, with most of the area below the wing.

The next one is the standard 12×9 street sign, with a single slash cut into the bottom of the endplate, and then bent such that it directs air from the outside of the endplate into the wake behind the car. The purpose of this is to (theoretically) reduce the trailing vortex and reduce drag. There’s no picture of this one, not because it’s a secret, but because you don’t want to do it.

Finally my Occam’s Racer endplate was one I made back in 2019. I shaped it so that there’s more area forward and less at the trailing edge. I put a notch in the top side trailing edge, because I’ve seen that on other endplates, and I bent a small 90-degree Gurney flap into the trailing edge.

Occam’s Racer endplate on a 9LR wing.

The endplates were tested on different cars and with different wings, but I did baseline the 12×9 endplate on every comparative test, and so we can have a valid discussion about the results.

EndplateDragLiftLift FLift R
12×9 rectangle0000
12×9 vented2.8-2.4.8-3.2
Wing-Logic4.211.374.3
Occam’s Racer6.9-8.90.8-9.6
  • 12×9 rectangle – Baseline for all runs.
  • 12×9 bottom vent – I thought the bottom vent would reduce the wingtip vortex, thereby reducing drag, but it actually did the opposite. By adding outside air into the wake downstream, it energized the flow and downforce went up by 2.4 lbs, which surprised me. However, drag went up by 2.8 which is the usual tradeoff, and not a very good one, at that.
  • Wing-Logic – This is a really weird and useful result. The total area is 55 square inches, which is not that much smaller than a a 12×6 rectangle at 72 inches, which you may recall performed about the same as a 12×9. However, the Wing-Logic endplate lost 11.3 lbs of downforce and gained 4.2 lbs drag. Ergo, this endplate is undersized, and doesn’t block enough of the high- and low-pressure regions, resulting in losses both ways.
  • Occam’s Racer – We’ve already seen that shapes are basically meaningless, and I doubt that top notch does anything, so the 9 lbs of downforce is probably down to the Gurney flap alone. This comes with a drag penalty, and the resulting 1.29 L/D ratio would only be beneficial on a car with lousy aerodynamics or at low speed.

The key takeaways from these tests are that there is an endplate size that is too small, and we found it. We also found out that bottom vents are a zero sum modification, just like most everything else. While the Gurney flap worked to increase downforce, I think it was too aggressive and too vertical. Angling the flick upwards, like Yeti does, makes more sense.

Conclusions

An endplate can be designed to reduce the strength of the wingtip vortex, and thus reduce wing drag. This can be accomplished by cutting vents in the top of the endplate, or using a 3D airfoil shape, or radiusing the intersection between wing and endplate, or shaping the endplate to combine smaller vortices into one. From my testing, I can say that anything that reduces drag also reduces downforce.

Conversely, an endplate can be designed to increase downforce. This can be simply a larger endplate, or sending more air sideways using a Gurney flap on the trailing edge, or mixing outside air into the wake, or by deflecting air upwards. From my testing, I can say that anything that increases downforce, also increases drag.

Combining the drag reduction tricks with the downforce producing tricks is a zero sum game. Of the endplates I’ve tested, there is no endplate that both reduces drag and also increases downforce. None. Most modifications to the size, shape, vents, etc., all result in a vehicle with the same L/D ratio.

However, that doesn’t mean the performance would be exactly the same. You might want to choose the endplate that has the least drag for a high-speed track, and the most downforce for a low-speed track. It’s a very minor consideration, but it’s worth noting that overall vehicle efficiency doesn’t mean it’s the same performance. Although what you’re really after is better vehicle efficiency.

Because cars are large complex objects with terrible aerodynamics, endplates that increase downforce usually results in the vehicle having a better L/D ratio, even though the downforce-producing endplate adds drag. For example, if your car has a L/D of 1:1, then any aero modification that is better than a 1:1 L/D ratio is going to improve the aerodynamic performance of your car.

Of the endplates I tested, only the Yeti Racecraft Time Attack endplates improved downforce and vehicle efficiency by a meaningful amount. As such, the Yeti Time Attack endplate is the clear winner of this test. Everything else is meh, or worse.

And here’s where a real opportunity lies. If you replace the Wing-Logic endplates with the Yeti Time Attack, you’d get something like 28 pounds more downforce for not even 2 lbs of drag. This combination should be offered out the door, because that’s about 10% more downforce for almost no penalty to drag. Wow. Loot. Wing-Logic and Yeti Racecraft need to get together and offer this peanut butter and jelly sandwich.

Other than combining this worst-of case with a best-of case, there isn’t a lot to recommend one way or the other. These are tiny numbers, people. For most of us, a plain rectangle one chord in height is going to perform as well as anything else. Any amount of time and money spent developing something better than a medium-sized rectangular end plate is better spent doing anything else, anywhere else on the car. Spend this time, money, and energy on your spouse.

At the highest level of motorsports, I’m sure it’s possible to design an endplate that works with a with a particular wing, on a specific car, at an exact angle, height, and setback distance. With those variables locked down, maybe there’s a minuscule gain in performance? But on all the cars, wings, and endplate combinations I’ve tested (and some data I can’t share), the different shapes, sizes, cuts, vents, etc., do nothing for the performance of my car.

There are a few things I didn’t test, or rather would re-test, given unlimited funds. As it is, I don’t plan to test endplates ever again (NEVER AGAIN – I’m shouting). But if I did…

  • Position – Placing the wing further rearward on the endplate, such that the trailing edge of the wing and trailing edge of the endplate aligned, seemed to be better. Whether this was because there’s more surface area in front of the wing, or whether it’s because there’s less surface area after the wing, I don’t know. Flying in the face of that generalization are the Yeti endplates, which all extend rearward a good amount, and they were all pretty decent. I should have cut one of the Yeti endplates right at the trailing edge to see what happens. But if there are gains to be had, they are likely to be pretty small.
  • Yaw – Race cars go around corners, and in doing so, typically have around 5 degrees of yaw. As a result, thin and flat endplates will experience some degree of flow separation at the leading edge. 3D endplates, with thick radiused leading edges would seem to be better in this regard. I tested thicker endplates, which were not good, but perhaps in yaw, they would have been? Maybe with a different airfoil profile? That mystery remains.

In the end, endplate performance doesn’t matter much. So perhaps the least important performance aspect is the most important purchasing decision: how the owner feels about it. If you like the look of a certain endplate, buy that endplate. If you’re a fanboi of a particular company, buy their endplates. And if junkyard-chic appeals to you, go to a scrapyard with $2 and cut a street sign in half.

Side force and center of pressure

Before I wrap up this article I want to discuss one more datapoint that I included in the final table of results: side force. This value ranged from -1.7 lbs to +5.7 lbs, with larger endplates having a greater side force, as you might expect.

I can’t tell you how much side force is going to affect the handing of the car; all cars are different, and I haven’t experimented with it myself. But any surface area at the rear of the car moves moves the center of pressure rearward. Station wagons and hatchbacks, with their large cargo areas, and LeMans prototypes, with their shark-fin bodywork, all move the center of pressure rearward.

Moving the center of pressure rearward changes how the car handles. The distance between the center of gravity and the center of pressure is called the static margin. From a driver’s perspective, a low static margin means the car gets looser at high speed. Conversely, a higher static margin means more high speed stability, and fewer corrections when the car goes over the limit. But the tradeoff is a car that is harder to steer, or may in fact understeer at high speed. Since wings are at the very rear of the car, the size of the endplates can have a significant effect on the static margin.

On a mid- or rear-engine car, the center of gravity is rear biased, and the static margin is low. Using larger endplates is a way to increase the static margin, and gain some high speed stability. If I had a 911, I’d use big-ass endplates.

Conversely, on a FWD hatchback, there’s a lot of weight up front, and a lot of surface area on the rear of the car, which results in a very large (too much) static margin. In this case, I’d use smaller endplates, because I don’t want to make a bad situation worse.

So when you look at the summary table, you might use the side force value and the weight balance of your car as another variable that factors into your choice of endplates. We already know that most endplates aren’t doing much to affect the car’s performance, and so side force might prove to be more important than a couple pounds of drag or downforce, this way or that way.

I’ll leave you with this summary table and a subjective performance grade. The price of the endplates isn’t factored into the grade, or you’d see a bunch of street sign trash at the top of the list.

EndplateGradeDragLiftSideCost
Yeti Time AttackA5.9-16.7-0.6$200
9LR basicB+0.8-7.2-0.5$72
Yeti flickB0.2-4-0.7$175
Yeti swooshB--0.9-0.10.3$150
Occam’s RacerB-6.9-8.90.2$10
9LR CFD v2B-1.1-3.70.9$240
12×6C-0.51.5-0.7$2
12×9 basicC000$2
12×9 bottom ventC2.8-2.41.7$2
12×16 Delta RC4.1-4.12.3$4
12×16 Delta FC4.3-3.23.5$4
Megga (12×10.5*)C1.1-0.81.35$198
12×12C2.2-1.62.7$4
12×15*C4.7-2.554.2$4
12×18C-7.2-3.55.7$4
9LR CFD v1C-4.1-1.82.2n/a
9LR CFD v1 revC-3.5-1.51.2n/a
12×9 filletD0.341.8$10
Wing-LogicD4.211.3-0.1$0
12×6, airfoilF-1.326.8-1.7$2
12×6 filletF-4.824.70.6$10
If you found this information useful, please Buy Me a Coffee. I’ve spent over $2000 testing endplates in a wind tunnel. The time to build, organize, and write that all up is not included. You may have noticed there are no ads or popups or other annoying shite on my website, because you probably hate that as much as I do. Please support science, open data, and further testing by buying me a cuppa. Thanks!

Wing-Logic MSHD: Wind Tunnel Tested

In a previous article, I go over the origin story of the MSHD, and the minor role I played in getting this wing to market. I have no financial relationship with Wing-Logic, and only met the owner Michael Jui last week, when I invited him to come to the wind tunnel to test his wing.

Wind tunnel testing is important because it’s real, accurate, and measures the entire vehicle. You see a lot of companies using CFD alone, often in free stream (not the entire vehicle), which is often misused as a marketing gimmick.

Professional race teams develop in CFD, but they struggle to get within 10% of reality. They then use wind tunnel and track testing to verify CFD. That’s because CFD is just a computer calculation. The simulation gets better and better with feedback from the real world, but if you’re not putting real data back into the feedback loop, CFD results in colorful pictures, wild claims, and aero balance figures that are laughably incorrect.

I don’t do CFD. I do track testing and wind tunnel testing. Only. There are enough people publishing CFD, and not enough doing wind tunnel testing, so I’ll keep doing the harder work.

At this point I’ve tested 40-ish car/wing combinations in the wind tunnel, including Pro Car Innovations (55”, 68”), 9 Lives Racing single (55”, 64”, 68”, 72”), and dual wing (64”, 72”), Wing Logic original (70”), APR GTC 250 (61”), S1223 (54×11), 3D MSHD 500 sq-in (63”), GLTC 250 sq-in, lots of my own DIY wings, and a few others that are sworn to secrecy. So getting the MSHD tested and compared against this database of knowledge was important.

I brought three Wing-Logic MSHD wings for testing: 71”, 68”, and 64”. I tested both bottom mounts and swan necks, and put 10 different endplates on them. The 64” wing is set up to be used as both a single wing and a dual wing so that I could test that as well. I’d put these wings on my Veloster N and a first gen BRZ, and get not only the data, but apples to apples comparison with other wings.

If you’re wondering who pays for these wind tunnel tests, I do. It’s insanely expensive, and the only way I can offset the expense is by taking donations. There are no annoying adds or popups on my site, because you don’t like them either. Please consider buying me a coffee, which supports this and future wind tunnel tests.

MSHD airfoil

MSHD stands for Motor Sports High Downforce and that’s what it was designed for. It has more camber and thickness than airfoils developed for aviation.

Which makes sense. A wing should be designed for a particular application and speed. Cars are not airplanes, and so putting an airplane wing on a car makes about as much sense as putting a car wing on an airplane.

As a motorsports airfoil, the MSHD needed to be useful not only as a rear wing, but also as a front wing (taking advantage of ground effect), and as a dual element. But primarily it needed to work at lower Reynolds numbers, which means lower speeds and smaller wings (less chord).

Someone recently sent me an Instagram reel about the MSHD being only useful for low speeds, since it was developed for FSAE cars, with Reynolds numbers of 300K. Doing your aerodynamic research on social media is eating other people’s vomit, but I’ll address that nonsense right away.

  • Just because a wing was designed to work at low Reynolds numbers doesn’t mean it won’t also perform well at higher Re. Go to Airfoil tools and look up all the low-Reynolds high-lift wings and notice how they improve in efficiency the faster you go, even up to 2 million Re.
  • The Wing-Logic MSHD has a 250mm chord, and 300K Re calculates to about 38 mph (61 kph). The A2 wind tunnel operates at 85 mph, which is around 680K Reynolds. So if the MSHD works well at over 225% of its designed speed (it did), rest assured that it will work at whatever speed your car goes (it will).
  • And finally, if you need a wing for FSAE or autocross, then this is your guy.

MSHD vs 9 Lives and PCI

Probably what most people want to know is, how does the MSHD compare to industry standards, like the 9 Lives Racing Big Wang and Pro Car Innvoations (PCI) wing? So let’s start right off with comparisons. To even the playing field, all of the wings were tested with the same endplates, and not the ones that come in the box.

Note that for all of the data that follows, I use 100 mph as the reference speed. This is lower than many manufacturers use, because people like large numbers. But I feel this is a more realistic speed, at least for my audience.

For simplicity, I measure wing angle from the horizontal. But note that air comes down the rear window at an angle, usually around 5-7 degrees, such that a zero degree setting is actually 5-7 degrees angle of attack. Most wings will stall at over 12 degrees, and so I usually stop at about 5-6 degrees from the horizontal. Obviously the shape of the car, and the location of the wing (height and setback distance), also change the angle of incidence, and unless you know those exactly for every car, measuring from the horizontal is just a heck of a lot easier.

First I tested a 64″ MSHD versus a 64″ 9 Lives Racing Big Wang. This is their original wing, which is now sold as the Express. I put these on my Veloster, which doesn’t work particularly well with wings, so it’s a great worst-case scenario.

I made a custom roof mount so I could test wings with Miata spaced brackets at various heights and setback distances.

In the following table I list both the L/D ratio of the wing itself, and also the L/D ratio of the entire vehicle. This is an important distinction, because an ultra efficient wing that doesn’t make a lot of downforce won’t influence the overall aerodynamics of the car. It’s far more important to make a lot of downforce, which results in the vehicle having a better L/D. In the end, this is what matters.

Also, if you’ve read my other articles you may have noticed the L/D ratio of the wing is different every time. That’s because the shape of the vehicle has a lot of influence on the performance of the wing. The same wing on my hatchback might be 4:1 L/D, while on a Miata it might be 10:1, and on a 8th gen Civic Si, a magical 25:1. That’s yet another reason why looking at the L/D of the wing is less important, and what really matters is the aerodynamic efficiency of the entire vehicle.

WingDownforceDragL/D wingL/D car
9LR 0-deg130.930.24.334.53
9LR 5-deg157.638.34.116.61
MSHD 0148.437.53.961.58
MSHD 5191.149.23.884.72
MSHD 9210.557.73.651.76

As you can see, the 9 Lives Racing wing is more efficient, in the sense that it has less drag for the downforce that it produces. However, the MSHD makes significantly more downforce, and results in a better L/D ratio of the entire car.

Next I compared a 68” MSHD vs a 68” PCI on Raul’s first gen BRZ/FRS/86. This is a properly shaped fastback and a better test of rear aero.

WingDownforceDragL/D wingL/D car
PCI 0-deg150.621.76.95.57
PCI 6-deg170.125.86.60.7
MSHD 6-deg191.7286.85.78

On the BRZ we only ran the MSHD at 6 degrees, to match the high-downforce setting of the PCI wing. Again, you can see the MSHD results in a better L/D of the vehicle, and surprisingly the MSHD wing itself is also more efficient than the PCI at the same 6 degrees.

(If you’re wondering how a 9LR and PCI compare, see my first wind tunnel report, they were quite similar.)

Isn’t this just about more chord?

The Wing-Logic MSHD measures 250mm chord, which is 106.5% more chord than the 9 Lives wing, and 113% more than the PCI. If we just scaled up the 9LR and PCI to the same chord, wouldn’t they perform better, and maybe even beat the MSHD?

Possibly. For sure more chord is better, it means you can a) make the same amount of downforce with less wing angle, and b) wings are more efficient at higher speeds or larger chords (which are essentially the same thing), and so a wing with more chord is more better.

But one thing that sets the MSHD apart from really any other wing I’ve tested is that it can be set to absurd angles of attack. This is why we tried the 9-degree setting, and even at that, the wing wasn’t stalling yet. It’s likely that with a Gurney flap, we could have gone to 12 degrees or more. Which is crazy, because the roofline itself is adding 5-7 degrees to the wing angle.

But that’s one of the great things about the MSHD shape, is that it can use aggressive angles of attack. The wing won’t be especially efficient at high AoA settings, but it does mean you don’t necessarily need a 3D wing.

3D shapes, or twisted wings, are made so that the center of the wing doesn’t stall. This is because the air coming down the middle of the wing is effectively at a greater angle of attack than the air on the sides of the car. Twisting the ends down means the entire wing is at the same angle of attack. However, you can use a 2D MSHD wing and the center still won’t stall, getting much of the benefit of a 3D wing.

MSHD single vs a dual element wing?

Wing-Logic’s Michael Jui wondered out loud how his MSHD would compare to a 9 Lives dual element. I told him that the dual element has more chord and camber, and so there’s no way they can compete against each other. But for shits and grins, I’ll combine a couple data points from the wind tunnel to see how close we can get.

For comparison sake, I’ll use a 9 Lives dual element using standard bottom mounts, with the main wing set to zero degrees and the upper element to 35 degrees. This is about the maximum downforce setting, and very hard to beat.

For the Wing-Logic, I’ll use swan neck wing mounts, a 1/2″ Gurney flap, and set the wing to 5 degrees. (It would have been better to use 9-degrees AoA, but I didn’t run that angle with the Gurney flap, and I don’t want to guess at the values.)

WingDownforce lbsDrag lbs
9 Lives dual, 0/35284.276.4
MSHD swan, 5-deg250.170.8

You can see the MSHD single falls short of the 9 Lives dual element by 34 lbs of downforce, but it also makes less drag. So the 9LR dual element is clearly superior to a MSHD single element for outright downforce, but I’m surprised how close the MSHD got. And I wonder about a higher angle of attack, and using higher downforce endplates (you can read about that in my next article, Time Attack endplates closed the gap to just 18 lbs between MSHD single and 9LR dual).

So the next obvious question is, what about using the MSHD as a dual element?

MSHD dual element

I already wrote up an article on how I built a MSHD dual element, and so click over there if you want the backstory. The upper element is eBay crap I cobbled together, and not a great wing. Nevertheless, the MSHD dual element worked great.

ngDownforce lbsDrag lbsCar L/D
9 Lives dual, 0/35284.276.4.97
MSHD dual 0/30314.097.01.00
MSHD dual 5/35331.3111.21.01

That’s a lot of downforce, especially in the 5-degree setting, and also a lot of drag. For an autocross or low-speed track, where downforce matters and drag doesn’t, this would be pretty awesome. Michael Jui was so impressed by the results that he’s planning on making a proper MSHD extrusion for the upper element. More on that in the future.

Conclusion

I have no financial relationship with Wing-Logic, but I wish I did. Compared to the original Wing-Logic, the MSHD makes more downforce, even without the built-in Gurney flap of the original wing. The MSHD is also significantly lighter than the original wing, and a better product at the same price.

At the same length, the MSHD makes more downforce than any other aluminum wing I’ve tested. The end result is that a car with a Wing-Logic MSHD will have a higher aerodynamic efficiency than with any other wing. (I’m not including carbon fiber wings with 12+” chord, as that’s a different playing field, and market).

When I graph the downforce and drag of the MSHD at different angles of attack, and then compare the resulting vehicle lift-drag ratio with other wings, it’s clear that the MSHD results in better vehicle efficiency at all angles. Equally important, the MSHD allows you to use a higher angle of attack than any other wing, which obviates the need for a 3D wing. With a swan neck wing mount and a Gurney flap, the MSHD isn’t that far off the maximum setting for a dual wing, although I have to admit I’m looking forward to a proper dual element as well.

I tested a bunch of endplates and Gurney flaps on this wing, and I’ll get around to posting those results sometime soon. I’m also putting the dual-element on a Lancer EvoX for some real-world track testing. But stop reading now and jump over to Wing-Logic. Michael tells me he sold out his last shipment quickly, and I expect the latest batch to go fast as well.

Wind Tunnel Adventure 2026

Last week I went to VIR and the A2 wind tunnel. Both are about 10 hours away from me, so I made it a twofer and hit them on the same trip. I couldn’t get two consecutive days at A2, so the wind tunnel testing was on a Monday and a Thursday, with VIR in between.

I’ll get around to sharing some of the data in the upcoming weeks, and follow up with another wind tunnel report. I’ve been talking to AJ Hartman about writing a book together, and I think I think this could take the place of the wind tunnel report, but we shall see.

Monday was slated as hatchback day, with my Veloster and Andrew Rivers’s CRZ. We also had some extra company, with Kaan from the Blind Apex podcast, Michael Jui from Wing-Logic, and Robertson Racing’s aerodynamicist Tim Miller.

Thursday was fastback day. AJ Hartman brought a customer’s C7 Corvette, Raul Iriarte brought his ST5 BRZ, and Pete Mink a Porsche 944. We also had a few more guests with fellow blogger TJ Lathrop from The Rising Edge, and aerodynamicist Ido Waksman, who used to work for Honda and Pratt Miller, but now has his own business called MAD Aerodynamics. AJ also brought along a couple employees, past and present, who hadn’t been to the wind tunnel before.

So it was a full house on both days, and sometimes chaotic. But with plenty of hands on deck, we had extra people to turn wrenches, fetch things, wool tuft the cars, and fabricate parts as needed. All of which is necessary because nothing goes exactly as it should.

I spend a lot of time organizing, building parts, figuring out the order in which to test things, and putting together spreadsheets. This mostly works out, but there’s always a fitment problem, or something you left at home. No plan survives contact with the enemy.

For example, Andrew’s S1223 foam-core wing didn’t make the test. During vacuum bagging the core shifted, and so he got a pretzel instead of a wing. Andrew ordered a Simon McBeath wing, but it wasn’t ready until the day after the wind tunnel test. I thought maybe we could use a new nylon wing from Adam Bao of Epsilon, which was coming hot off the presses from Asia… but it too was stuck in shipping.

In the end, I made up a set of temporary mounts for my 71″ MSHD wing, and I’m glad that worked out, because we got great data from his car.

Day one testing

After unloading 8 wings, 4 spoilers, a roof extension, tools, parts, raw materials, etc., the Veloster went first into the tunnel. The first four runs were canard size and edge height, the former being obvious, the latter less so.

No trailer needed, all of this went inside the car.

Then I was onto wing mounts and locations. I started with basic mounts below the wing, then also used radiused fillets, which both reduced drag and increased downforce. I ended with reverse swan necks, which oddly increases drag, but also increased downforce a fair amount.

Attaching the reverse swan mounts while Kaan does absolutely nothing.

All of this testing was with a 71” Wing-Logic MSHD. I then tested endplate shapes, sizes, vents, etc., then set the wing aside so that I could do wing comparisons.

I swapped to a 64” version of the MSHD, so I could test it versus a 64” 9 Lives original wing. I tested both as single wings and dual wings, and the MSHD made more downforce, which resulted in higher efficiency for all angles and arrangements.

I’ll do a full write up on the MSHD performance soon, but to sum it up, it outperformed every other aluminum wing I’ve ever tested.

We then switched to Andrew’s CRZ, which put down some of the best numbers I’ve seen, with over 1.6 L/D ratio. This is pretty astonishing since he doesn’t have a splitter (but does have an undertray), and that he borrowed a wing which we riveted on just before the test.

He did some tests on canards, open/closed windows, and a wing sweep. All of this should be quite useful when he gets his new wing, which is of course different, but should give at least some point of reference.

All told I did 31 runs on my Veloster, and 8 on the CRZ, which brings me up to about 70 runs just on hatchbacks, over my various tests. I really should write a book on hatchback aero at some point.

And then I was off to VIR for what was supposed to be a couple days of instructing and driving.

A day at VIR

I was supposed to instruct for two days VIR, but we had more instructors than students and so I had nobody to teach. Which was fine for me, since this was my first time at VIR.

The first session was spoiled by my helmet being soaking wet because the Veloster A/C vent gets clogged easily, and then dumps water into the passenger footwell. I forgot about that, which is where my helmet and DE gear was.

But it was hot at VIR and my gear dried out quickly. I made the second session, which was a “how does Assetto Corsa match up with real life” experience, and it went well enough, except for the number of cars passing me. Everyone was on better tires and had more power, which made me the rolling chicane in the advanced group.

By the next session it was 130 degrees on the asphalt. My “cold” tire temps measured 117 with my pyrometer. I started to pick up the rhythm, but I was slowing too much for South Bend, T14, and Hog Pen.

I did one final session at the end of the days and managed a 2:20. I’m not particularly proud of that, it should have been a 2:14-15 based on the fact that VIR is a couple seconds faster than WGI.

Anyway, it was hot, three sessions wasn’t really enough for me to feel comfortable, my RS4s were toast, and whatever other excuses I can manage. The straights are too long for my tastes, but wow, it’s a fun track. VIR is every bit as good as people say it is.

Interlude: Pete’s 944

Getting back to the “no plan survives contact with the enemy” theme, let’s talk about Pete Mink’s Porsche 944 endurance racer. In this case the enemy was his neighbor’s son, who broke into Pete’s garage, stole his racecar, and took it for a joyride! I give the kid props for figuring out the kill switch, but teenagers these days don’t know how to use a manual transmission, so he money-shifted it, locked it up, and crashed into a ditch.

I found out about this midday Tuesday, while I was at VIR. Pete’s truck broke later that same day, and so he was well and truly fucked with no car, no truck, and much to do before the wind tunnel test on Thursday. Talk about kicking a man when he’s down.

So I did what any fellow racer would do and sacrificed a day at the track to help a brother in need. I left VIR at 6am the next morning, drove to Asheville, spent all day with Pete, and got back to my hotel in Mooresville some 14 hours later. A long day surely, but we got the aero installed, fetched his fixed truck, pushed the 944 into the trailer, and called it a day.

The forest rally stage part of the trip going from garage to garage on Pete’s property.

We didn’t get all of the aero transferred over to Pete’s backup car. The front was trashed, and so all the runs were done with no splitter or undertray. The backup car also didn’t have a transmission, so we had to push it in and out of the trailer, and so it was good that Pete is an ex-strongman competitor. He literally used to put on a harness and pull a semi truck from a standstill. This came in handy.

Back to the tunnel

Day two in the tunnel was hectic, with three cars to test. AJ Hartman went first because Raul and Pete were still in transit, but we had planned for that. His customer’s C7 put down some impressive numbers with the 14” chord wing and well developed splitter.

Then it was Pete’s turn, and we did a wing sweep with the new 9 Lives Evo wing. Since his car has no front aero, the balance is way off, but now Pete knows where to set the wing before it stalls.

We also made some DIY canards, using some of the knowledge from my Veloster testing. These worked really well, with almost no loss of rear downforce, and really good gains on the front. The surprising part was an efficiency of nearly 5:1, which you don’t generally see from canards.

We made canards on site. Pete (left) and Raul can’t keep a straight face about it.

Raul was next, and we did some of the coolest stuff on his car. Wing sweep and wing swap (PCI, 9LR, APR GTC200, Wing-Logic MSHD). We even did the 250 sq-in spoiler vs wing (swan neck this time) test for GLTC free points.

Raul got some great results out of splitter test, with both splitter angle and tunnels being evaluated.

I will say, the fastback shape of the BRZ makes it tricky to get the aero balance correct. The sleek shape means the rear has a ton of lift with no rear aero, but also makes a lot of downforce with a wing. And so the front/rear balance shifts more on this car than any other car I’ve seen.

You can’t just throw parts on a car like this and know what you’re getting, you have to test it. The car on the first turn, with a splitter and wing, had 0% front aero load distribution, but by the end of the test, was hitting the right numbers.

After that it was load up all the gear again, and drive the 10 hours back home, with a stop at Phil’s house to drop off the 9 Lives dual element I borrowed. I was back at Phil’s a couple days later to pick up some skateboard ramps his son Andy made. They generously gave these to me, and so thank you wind tunnel community, lets keep growing and sharing.

New skateboard ramps for me! From the team that has the Miata I took to the wind tunnel.

Occam’s Racer Greatest Hits

This site recently hit half a million views, and that milestone seems like a good time to reflect on how this all began.

I started this website in January 2019, with the intention of filling gaps in the Miata aerodynamics knowledge base, such as roofline shape (fastback vs OEM vs open top, etc.). I also wanted to make it easier to find information on Miata aerodynamics in general. There’s a lot of great information strewn about online, but it’s mixed up with things that are misleading or outright wrong (ahem, CFD). My intention was to put all the good stuff in one place, and keep adding to it.

Seven years later, my own site is becoming difficult to navigate. I’ve polluted all the good Miata information with tire tests, waded into articles on performance driving, mixed that in with a silly hatchback, and have even used this website as a goddamn diary. Now I have the same navigation problems I was trying to solve! So I thought an annotated list of my best articles could prove useful.

But it also occurred to me that recycling old content is anything but original. It’s like when a band releases a Greatest Hits album… is there a clearer sign that the band has hit the end of their career than recycling old songs on a new album? Well I guess there is something worse, they could start writing songs about Rock and Roll.

Songs about Rocking are the death knell of writer’s block. Whether it’s I Wanna Rock, or Rockin in the USA, or the worst song of all time, We Built this City (on Rock and Roll), writing about rocking is the opposite of rocking. It’s sucking.

So here we go. Here’s my Greatest Hits of the Occam’s Racer website, and I hope it Rocks Out!

Top five hits

The top five songs articles in terms of traffic are:

B-sides

These are slightly less popular, but are referenced a lot.

  • The Dunning-Kruger of Car Aerodynamics – We all start our aero journey without knowing what we’re doing, but with all the confidence in the world. Eventually that flip flops and we find ourselves in the pit of despair. And then we crawl out.
  • Active Aero Wings and Spoilers – Wherein I run simulations in OptimumLap and discover that DRS isn’t that useful on single-element wings and spoilers.
  • Thinking in Aerodynamic Coefficients – One of my favorite articles, with lots of different cars. If you like this one, I wrote another article with more examples.
  • How Downforce Affects Tires – You go faster, your tires last longer. Here’s why.
  • GT7 Aerodynamics – A self-indulgent nerd article on the non-realistic aerodynamics in Gran Turismo 7 results in some pretty cool discoveries, like the speed they use for downforce values, and the aero balance of all the cars.

Performance driving

My identical twin brother has a website, You Suck at Racing, which is largely about performance driving. So I don’t delve into this topic much, but I have written a few articles on the subject.

Podcasts

These aren’t listed anywhere on this website, but I’ve been on a few podcasts. Some of these are Spotify links, or Apple, or whatever. I don’t manage them, so don’t kill the messenger.

  • Aero for Endurance Racing – I try to use the Socratic method with Bill and Vicki, but I get blindsided by questions. This is a good one, though.
  • Miata Aero – I go on the Blind Apex podcast to talk about wind tunnel tests on a Miata, and how they don’t match the CFD. But we get into some other great results.
  • Wind Tunnel Best Practices – AJ Hartman and I discuss BPs with Kaan.
  • Taking Driver Coaching to 11 – I recap coaching with Speed Secrets Academy.
  • Garage Heroes in Training 439 – My brother and I talk about aero and Lemons racing.
  • RacersHQ – I talk aero with a Lemons team, and reveal some results from the wind tunnel.

Miata aerodynamics

It all began with Miata aerodynamics….

Miatas, but not aerodynamics

I’ve written a couple good articles on Miatas that aren’t just about aero.

Veloster N aerodynamics

Hatchback’s have shitty aero, but I keep polishing this turd.

  • How Much Downforce Do Canards Make? – I test the exact same canards in three different locations and get anywhere from 9 lbs to 81 lbs of downforce. Astonishing.
  • Testing Spoilers and Wings on a FWD Hatchback – This is a must-read for people who believe aero balance should match chassis balance. What’s surprising is that the car goes faster with more rear downforce and no front downforce. I then do the same test at NYST, and the results are even more dramatic, -2.5 seconds per lap only with rear aero. I then try a similar test at Watkins Glen.
  • Veloster N Splitters – Kinda everything on the subject, including aftermarket products, DIY build, and wind tunnel results.
  • Testing Wing Endplates – I test a bunch of endplates and find out that the 9LR CFD endplate works the same forward and backwards, and that the best of the test is a street sign cut in half.
  • Diffusers Without Flat Bottoms – The A2 wind tunnel isn’t the ideal place to test underbody aero, but I do it anyway, and come away unimpressed.

Veloster N, but not aerodynamics

More words on the best car I’ve owned.

  • Long-term Track Report – I recap a couple years of ownership, and why I bought the same car twice.
  • Tow Hitch – There’s no tow hitch available for the N, so I modified the tow hitch for a base model Veloster. Twice.
  • Mando ECS10 for Veloster N – How to install and configure the Mando suspension controller for your Veloster N or Kona N.
  • Hood Vents and Cooling – I test engine temperature using 50/50 anti-freeze versus Water Wetter and also hood vents. I later did an article where I installed Race Louvers.
  • Engine Modes Dynoed – I take my car to the dyno and get 244 hp at the wheels. And then I test the different engine modes and find out it’s basically the same in every mode.

DIY

I build a lot of my own aero parts, so it was hard to cull this list to just five.

  • MSHD GLTC 500 – I build a foam and fiberglass wing with a MSHD profile, 3D shape, and 500 square inch limit. I test it in the wind tunnel and beats all the other wings.
  • DIY Selig S1223 – I build a low-Reynolds high-lift wing the old-fashioned way.
  • Miata Opera Coupe – This is the stupidest DIY project I ever did, giving my Miata the “She’s my sister and my daughter” look of an opera coupe.
  • Gas Can Speed Test – I try different ways to dump 5 gallons of fuel as quickly as possible.
  • Cold-side Ram Intake – I make a ram-air cowl induction system that is so loud I have to remove it. In keeping with the DIY theme, I make a manometer out of a soda bottle and yard stick.

Tire Tests

I have hundreds of laps at Pineview Run, and can consistently put a car on the limit. I feel like this makes my tire tests pretty decent.

Race reports

My race reports are long and narcissistic, and belong in a worst-of Occam’s Racer. Skip these.

  • Beating up Miatas in a Yaris – We race Thunderhill backwards in a 100-hp FWD hatchback and beat 10 out of 12 Miatas.
  • Everturrible: I race a Honda minivan at Thompson, Thunderbolt, and PittRace. This was my last and best race in it, in which I also used Accelera 651 Sport tires.
  • Mid Ohio Part 5. Driver-mod coach and Supermiata driver Sonny Watanasirsuk joins the Occam’s Racer team for an enduro at Mid-O. Alyssa, who had never driven the track before, beats Sonny in every session.
  • Sebring Race Report – I drive a first-gen MR2 in the rain, beat the team’s best lap by 10 seconds, break the car, and kill a wild boar.

Snark

Because aerodynamics is a math-heavy, nerdy subject, I try to be both informative and amusing at the same time. Sometimes I have fun at someone else’s expense, but it’s meant in jest, not to harm.

Who am I kidding? Sometimes I’m out to hurt feelings. I mean, that’s why I drive a fucking Miata. It’s underpowered, a disrespected hair-dresser car. So when I pass a GT4 Clubsport on the outside, and they park it in the next session… bitch, that’s winning.

So here are a few of my most insulting articles.

Windsible #1: Blowing Smoke

I’ve been itching to use a smoke wand for some time, but whenever I go to the A2 wind tunnel, I never use it. Smoke doesn’t return any numbers, and it takes time, and time is money. So being a cheap bastard, I use short yarn tufts to visualize what’s happening in the boundary layer, and call that good enough.

But yarn isn’t great for scratching the smoke wand itch, so when I saw a prototype scale model wind tunnel a couple years ago, I got on kickstarter and became an early backer of Windsible.

As a backer, I got regular progress reports and saw the development process evolve. It’s a shit ton of work! From my initial backing to delivery took 22 months.

The unit required very little assembly, and the quick start instructions got me up and running within minutes of unboxing. The machine was already set to my preferred language and to mph, which was a nice touch.

It also comes with cleaning tools, an extra filter, and two bottles of fog fluid. There are two fog dispensers, one vertical and one horizontal. They attach magnetically to the fogger base, so there no futzing around with small parts. Very clever. You can also buy more fogger attachments from Fun-Tech-Lab.

You can adjust the color and brightness of the internal lighting, but most of the illumination is at the front of the tunnel, and I’m more interested in what happens at the trailing edge. Anyway, this works well in a dark room, and not as well with lights behind you (glare).

For build quality, design, and ease of use, I’m giving this a solid 10 out of 10.

Scale models

The Windsible is designed for 1/18 cars, and the fan speed scales up to 210 mph in that size. You can of course put any size cars in the wind tunnel, and I think 1/18 is actually too big. 1/24 scale cars are cheaper, and the smaller size lets me see more of the trailing wake.

My local CVS pharmacy has a bunch of 1/24 scale cars and I got a Celia GT and C6 Corvette there. I would have bought more cars, but many were missing mirrors or other small parts. Alibaba and eBay are both good sources for 1/24 diecast cars, and many plastic Tamiya models are also in this size.

Lowe’s has a bunch of smaller scale vehicles for just $7. These range from 1/28 scale to 1/36. Most of the cars are 1/32, but there are some oddball sizes mixed in, such as 1/31 and 1/33.

I can see a problem developing already….

I bought a Subaru rally car at 1/36 scale, and it’s borderline too small. The problem isn’t just the size of car and its parts, but the height of the streamlines. It’s necessary to raise the cars up slightly to get into the bottom stream.

1:36 scale WRX STi. When pointed straight ahead, the low and short rally wing is entirely in the wake behind the canopy. When the car is in yaw, the wing and strakes come into play.

The only Veloster N I could find is in 1/38 scale, which is too small to develop parts for. I’ll use this one to mock up interactions with a teardrop trailer I’m building, but for visualizing aero parts, I’ll need something larger.

I plan to do a whole series of tests and videos, but I need a repeatable way to set up cars exactly the same way, a static camera mount, and lots of little parts.

Open windows

I can tell you one thing right away, which is that every car is different with respect to open windows. Some cars seem to be designed for open windows, with mirror placement and other factors actively shunting air away from the window.

1/24 Celica GT seems quite good with open windows.

On other cars, air smashes into the B-pillar and creates turbulence inside the cockpit. This results in a vortex of air shooting out the top rear edge of the window.

C6 appears much worse with open windows. I like spoilers, and will test them at various heights on lots of cars.

How open windows affects aero is a fascinating subject, and an area I will spend some time investigating. This is something I’ve already experimented with in the A2 wind tunnel, and so I’m not surprised every car is different.

If you’ve read my first wind tunnel report, you know that open windows reduced rear downforce by 15% and increased drag by 7% on my Veloster. I was able to halve these with rain visors.

Meanwhile the Miata I tested in the second wind tunnel report did not lose as much with open windows. But I was still able to reduce drag and increase downforce meaningfully with some clever tricks. (Also, don’t remove side mirrors on an open-window car.)

Finally, Kaan’s 8th gen Civic Si didn’t seem to care one way or the other if the windows were open, or if we put on a safety net, etc. Weird, and wonderful, these differences in just open windows!

Not for drag and downforce

Measuring drag and downforce in a wind tunnel of this size is a waste of time. Anything you’d learn from such an exercise would be just as likely to send you down the wrong path as the right one.

This isn’t a problem of not having an accurate scale (I have scales that go down to a thousandth of a gram), nor the usual things people say about the A2 wind tunnel, like like the wheels don’t spin, or the growing boundary layer, or the blockage ratio from the size of the tunnel. The reason you can’t use the Windsible for drag and downforce is that things behave differently at different Reynolds numbers.

As an example, let’s take an aero modification everyone is familiar with, the dimples on golf balls. The dimples create a thicker boundary layer just before the air separates off the back half of the ball. This thicker area of turbulence delays separation, which essentially fools the air into thinking the ball is more egg shaped, than sphere shaped. An egg is more elongated and has better aerodynamics, and so the ball flies further.

Now what’s truly interesting is that at high speed, the dimples increase drag. Also at low speed, the dimples increase drag. But in the range of speed at which golf balls travel most of their distance, the dimples decrease drag.

Testing a scale model golf ball in this wind tunnel would be folly, because you can’t accelerate the air to a speed where the dimples would reduce drag. It would always show that dimples increase drag. Which we know isn’t true.

Likewise, a scale model wing would be something like 5k Reynolds in this tunnel. In Airfoil Tools, you can’t even enter values under 50k Re! Whereas a typical car wing in a typical corner is going to have a Reynolds number of around 500k.

So any downforce data you’d get from testing at this size and speed (Reynolds number) would not relate to the real world. Total. Waste. Of. Time.

Future testing

So I won’t be testing downforce, but you can expect to see more posts on visualizing flow, including wing placement, yaw, drafting, trailering, and lots of silly aero mods. I’ll title these posts “Windsible # x:” so you can find them or ignore them.

This is definitely more of a winter doldrums kind of toy, and with track season now fully underway, I have full size parts to build and test. So don’t expect a lot of Windsible posts just yet, but they will figure into a Lancer Evo project I’m working on right now.

If you want to join in the fun, but don’t want to invest in a Windsible, I can help. Get a 1/24-ish scale model of your car, preferably in a dark color that contrasts well with the smoke. Optionally modify it to look like your piece of shit Lemons car (or whatever), and send it to Mario Korf, 137 Hopkins Rd, Ithaca NY 14850. I’ll be happy to take videos and pictures with things you want to try. Pay for postage, and I’ll send it back when we’re done.

Back to the A2 Wind Tunnel

My annual trip to the wind tunnel is coming up soon. I had originally planned to do just a single day of testing, but two cars became three, which became four. Now I’m at five. And that’s too many to test in one day.

So I’ll be headed to A2 on 5/18 for hatchback day, then to VIR to instruct for a couple days, and then back to A2 on 5/21 for fastback day. There’s room for a third car on the first day, contact me if you want to get in on this.

Hatchbacks 5/18

The first day will be my Veloster N and Andrew Rivers’ Honda CRZ. We are both testing canards and wings, and some other odds and ends.

I’ve tested canards on my Veloster twice now. The first time I was mostly concerned about the location of the canard. If you bought Wind Tunnel Report 01, then you know that location played an enormous role in downforce. The same exact canard produced anywhere from 11 lbs to 80 lbs of downforce depending on how high I mounted it.

The second time I tested canards I wanted to find out if I was getting downforce from the interaction between the canard and splitter, or was it just the canard itself? I was also able to test a CFD-designed canard from Verus, which didn’t produce a lot of downforce, but also had zero drag.

This time I’m testing canard edge treatment and size. The DIY canards I’ve tested on my Veloster have had a sharp outer edge, but I often see canards with a vertical outer edge, kind of a fence or Gurney flap. So I’m testing two different heights versus a plain edge. Then I’ll also increase the size of the canard to see if more area produces more downforce.

Finally, I want to see if I can get a mid-height canard to interact with the lower canard. On other cars I’ve tested, the lower canard does most of the work, while the mid-height canard seems to reduce the drag of the entire system. I want to see if I can make that happen on my car.

Andrew is doing some different canard experiments, seeing if there’s interaction between various front end components. I don’t want to say too much on this, as those are his tests, but they should be super cool.

Next we are both testing wings. I’m finally getting around to testing a MSHD wing, both as a single and dual element. I’ll bring along a 9 Lives with me as well, since that’s a popular benchmark, and easy to test as a single or dual element.

Because hatchbacks are weird, I also plan to test wing location. I’m fairly certain that higher is better, but I want to check forward and rearward locations, and how those affect front downforce. I also want to test bottom mounts versus swan necks.

Andrew is testing a Simon MacBeath wing with swan necks, and I’m very excited to see how that performs. He’s doing a sweep of angles and a couple different end plates. I plan to throw a MSHD on his car, just to see how they compare.

Andrew’s car looks great with all the aero, and I’m interested to see which hatchback will have better numbers. But no matter how it turns out, we’ll learn from each other’s experiments, and both of our cars can improve from that.

Andrew’s CRZ has very nice swan necks. The tube is a stiffener inside his DIY S1223.

Fastbacks 5/21

This is going to be an exciting day, because we can test wings on proper rooflines, not crappy hatchbacks. Pete is bringing his endurance racing 944, Raul has a BRZ, and AJ is bringing a C7.

As part of the wing tests, we will throw a mess of different end plates on the Porsche. I made an Open Call for testing end plates, but so far not that many manufacturers have joined the game.

Just the same, there are some really cool endplate designs we’ll be testing, with vents, 3D shapes, and other trickery. Even if endplates don’t make a huge difference, they are easy to change out and are visually interesting.

We may try the most radical end plates on two or three different cars, to see if there’s any difference. It’s worth checking out, but I kinda doubt it.

Raul’s BRZ will be the test bed for a few different wings including a PCI, MSHD, APR GTC200, and 9 Lives. I’m also trying to get my hands on a Verus high efficiency wing, and there’s a new nylon wing from Baero that might sneak into the tests if it can get through customs quickly. It has a familiar look, but with a lot more chord, and I have high expectations.

We have to fit many of those wings on the same trunk mounts, which is proving to be a bit of work making brackets. We also want to test wing location, and if setting the wing back a little further is better.

Raul doing the obligatory “is is strong enough?” test.

Raul’s car also has a splitter and so we plan to test splitter tunnels and some other front end stuff.

I’ll write up a report this summer, and probably jump on a podcast to talk about some of the results. Hopefully Kaan from the Blind Apex will come down to see some of testing firsthand, and we can recap that on his show with some special guests.

As usual I’m planning to rope AJ Hartman into participating, but also inviting Ido Waksman and Tim Miller, if their busy schedules permit. Michael Jui from Wing-Logic is also coming for the first day, and so it will be cool to finally meet him in person.

All said, it looks to be quite the party, and we are set to learn a whole bunch about our expectations, and that aero results are often not what you think. Subscribe to the blog if you haven’t already, you don’t want to miss the articles coming out of these tests!

Your Splitter Is Mounted Upside Down

This weekend I was instructing at the Mass Tuning event at Watkins Glen. I saw three cars with Racebred splitters. All of them had their splitters mounted upside down.

What do I mean, aren’t splitters just flat? Sometimes and unfortunately yes, but even when they are flat, a splitter behaves essentially as a wing; there’s high pressure on top, and low pressure beneath, and the difference creates downforce. The low pressure undersides of wings and splitters produce much more downforce than the high pressure top sides, and so flow attachment beneath these components is critical.

Racebred only rounds the leading edge on one side of the splitter, and that’s where they put their logo. So people think that’s which way the splitter goes, logo side up. But the underside of the splitter is what matters, so it’s the bottom of the leading edge that needs rounding!

When manufacturers don’t understand fundamentals.

I mentioned this to one guy and he said, “but the texture is on the top side.” Waitaminute. You think putting texture on the blade is a performance enhancement… on the pressure side? The pressure side is of little consequence; any modifications you’d do to reduce flow separation (texture, whatnot), would be under splitter, not on top of it!

It’s understandable that customers don’t know the fundamentals of aerodynamics; it’s not their job. Their job is to buy things. They trust manufacturers to have done the research and give them the products to go faster. So it’s a shame when aerodynamics manufacturers literally don’t know which side is up.

Look, I don’t want to just pick on Racebred. Putting your logo on the wrong side of your splitter is endemic in the aerodynamics manufacturers community. Look around and you’ll see lots of manufacturers who round the wrong side of the splitter blade.

9 Lives Racing splitter has the logo on the wrong side as well.

And when they do round it, it’s like just breaking the edge a little bit. The leading edge of the splitter should be as thick as possible, with as much radius as possible. On the underside of the splitter. This is one reason an Alumalite splitter screams “Amateur!” But I digress.

If you have an aftermarket splitter, do yourself a favor and examine which side the rounding is on. In most cases you’ll want to flip that embarrassment upside down. If the splitter isn’t rounded on either side, round the heck out of the underside leading edge.

At this event, and really at every event, I see a lot of splitters with unused real estate on the outside edge. This does nothing, because it doesn’t change the direction of air. All you’re doing with this extra width is inviting contact with hard objects.

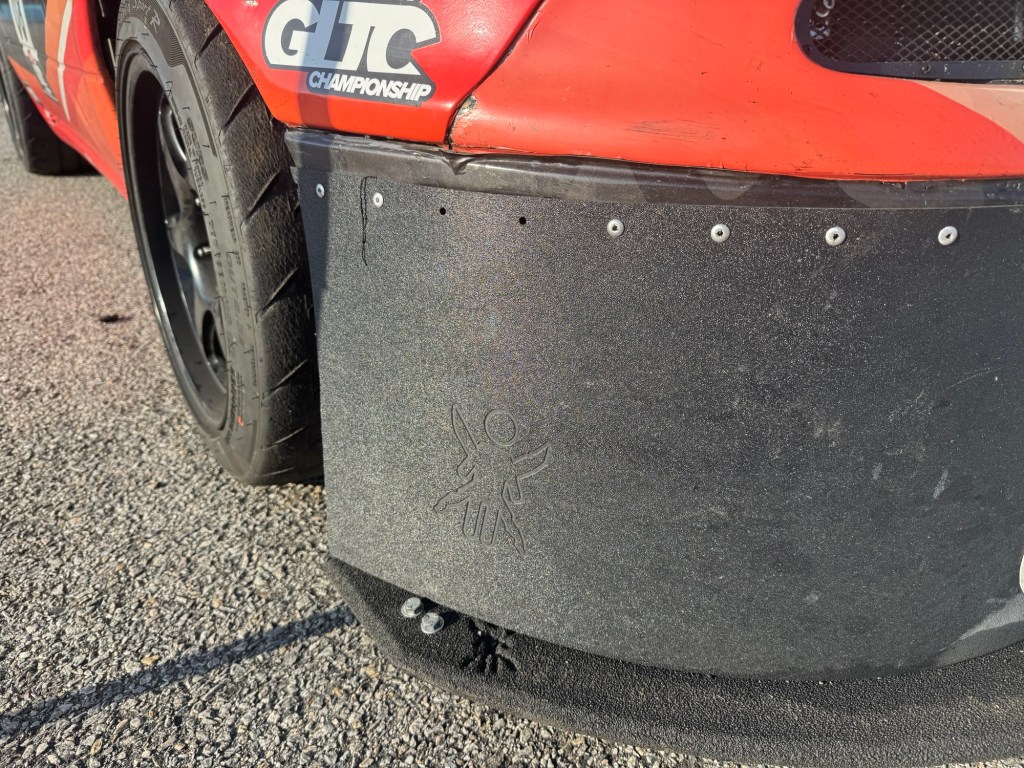

Use this area. (Yes, this is another Racebred splitter mounted upside down.)

A small kicker here is an easy way to increase the pressure differential above and below the splitter. Or put a fence on it and reduce downstream losses. But do something with this extra width people!

These and other mistakes are in my Your Splitter Sucks article. If the manufacturers can’t get it right, at least you have the information to fix it.

This is what a proper splitter blade looks like: Thick leading edge, rounded on the underside, curvature to the trailing edge, and optionally some vortex strakes to reduce tire squirt. (Two versions I built for a E30 with 12- and 5-degree curves.)

An Open Call to Test Your Endplates

A few years ago I tested end plates in the A2 wind tunnel. The data shows that there wasn’t much difference between them, and I may have drawn some hasty conclusions about that.

The fact is, a hatchback with a 55” wing is not the ideal playing field for this type of competition. The combination of a short wingspan and an odd C-pillar vortex coming off the hatchack roof may have polluted the air right next to the end plate. So this really needs to be tested again on a proper coupe or fastback.

I’m going to the wind tunnel on 5/18 and 5/21 with two good candidates, a BRZ and a 944. We’ll be using a much wider 68” wing, and will test end plates for realz this time. (Also, I may have space for one more car, contact me if you are interested.)

So here’s an open call to everyone who makes an end plate for a 9 Lives original (now Express) wing with 4 holes on the end. Send me your end plates and pay for return shipping, and I’ll send them back after the test. I’ll publish the report and send you a copy for free.

I don’t want to leave anyone out. So if you don’t make an end plate specifically for this wing, but you want to be included, I can drill and mount your end plates accurately, to your specifications.

Let’s do this!

The no-brakes drill is the foundation of performance driving

Ken Hill recently posted an article on substack of how the no-brakes drill eroded his confidence and made him 10 seconds slower per lap. I read this with great interest, because I personally feel the no-brakes drill is the foundation of performance driving.

I feel so strongly about that, that I can get into this fixed mindset: “Everyone will benefit from doing the no-brakes drill!” But after reading Ken’s article, I 100% agree with his assessment of why and how it didn’t work out for him. This seems contradictory, so let me explain.

22 years ago I was a globe trotting motorcycle journalist for a boutique quarterly magazine called Moto-Euro. It was a heavy and expensive coffee-table magazine, and our snobbery meant we only covered British and European bikes. But Keith Code’s California Superbike School wanted us to write an article about them, and I wanted to take the school. So the publisher went colorblind for an issue and said OK to a lime green Kawasaki ZX-636, rather than our usual blood red Ducatis.

I was a rider of average skills, with a motorcycle racing license from the Penguin Racing School at Loudon, NH. My racetrack experience was limited to NHMS on my Hawk GT and tracking a brace of Ducatis in Almeria (Spain). So this would be only my 5th track day, and my first time at Sears Point (which is Sonoma Raceway now, but is forever Sears Point to me).

Sears Point is a rollercoaster of blind corners and walls, and not what I’d call an easy track to learn. Nor would I call it one of the safer tracks in the USA. And if that setting wasn’t challenging enough, it was raining.

But it gets worse; in the classroom, Keith informed us that the first two sessions of the day, we would not be shifting or using the brakes. Wait, what?

I’m supposed to ride a high-performance bike I’ve never ridden, on a highly technical track I’ve never seen, in the goddamn rain, without using the brakes?!?!

But we all did it. And survived it. And then we did it again. And I can tell you, it was astonishing. Self preservation is a strong instinct. But as any racer can tell you, catching the rider in front of you is a stronger instinct!

So I gradually increased my speed, changed my lines, took a few risks, let off the gas later, found even more time on corner entry, and kept going faster and faster. All the while staying in 4th gear and never touching the brakes. In the rain.

Of course we eventually got around to shifting and braking, but those first two sessions were the foundation of the entire program.

Over the next two days, most of the coaches, including Keith Code himself, shared track time with us. As often as not, they’d elect to do the 4th-gear no brakes drill for the entire session – the whole train of them going nose to tail, scything through backmarkers.

Since that school, I’ve done the no-brakes drill on over 30 tracks, both on bikes and in cars. These days I use 3rd gear instead of 4th gear, because I’m in cars more than on bikes, but the drill is the same.

Trailbraking on a motorcycle

Back in 2004, the Keith Code order of operations was brake in a straight line while downshifting, release the brakes completely, then tip the bike into the corner, next crack open the throttle to stabilize the bike mid corner, and finally roll on throttle to corner exit. You read that correctly, no trailbraking.

Later (much later) I would learn motorcycle trailbraking from Bill Sink at EvolveGT, and that brought a whole new level to my riding. Same bike, same track, I dropped 1.5 seconds on corner entry alone! As effective as trailbraking is in a car, on a motorcycle, it’s a world of difference.

What happens when you trailbrake a motorcycle is slightly different than on a car. In both vehicles weight transfers to the front end, which results in a wider contact patch from the increased load, plus more heat, more mushing into the tarmac, and thus more grip.

But on a motorcycle, it’s proportionately more weight transfer. You never see a car go into the braking zone with the rear tires hovering just off the ground, but this is business as usual on a motorcycle. And so corner entry depends almost entirely on the front tire, and you control that, and feel that, with the brake lever.

Another thing that happens when you trailbrake a motorcycle is that the steering sharpens due to changes in geometry. The forks compress, which shortens the wheelbase slightly, but this also changes the steering angle, because the ass-end of the bike is in the air, and the forks are shorter.

When you take all of these factors together, it means a motorcycle on the brakes at corner entry has a very different feel than one that is coasting. Feel is super important, especially on a bike. Less so at the novice level, but certainly at Ken’s level, so let me delve into that for a sec.

Driving the front vs the rear

There are two types of riders and drivers: those who require front-end feel, and those who drive the rear end. Riders and drivers who drive the rear tire(s) are looser and more fun to watch. Their general attitude is “I’ll throw it into the corner and figure it out.” These are riders like Marc Marquez and drivers like Michael Schumacher or Max Verstappen. Their skill is legendary, and they seem like aliens because no other humans can do what they do, lap after lap.

Then you have the riders and drivers who depend on front-end feel. They can be incredibly fast and consistent when they are 100% comfortable with the front end. But it takes them time to get there, and if the planets aren’t aligned, the aliens are light years in front. In this category I’m thinking of riders like Colin Edwards and drivers like Jenson Button or Alain Prost.

I’m a front-end rider and driver myself. I suspect Ken Hill is as well. But even if he favors the rear, he’s obviously comfortable standing the bike on the front tire with the brakes, trailing off the brakes gradually while turning in, and then settling into the corner, and doing that all as one smooth uninterrupted action. He’s been able to take that complicated series of steps and push it into the subconscious, executing the dance with thoughtless precision. And so not doing that with the extra grip and feel generated by trailbraking seems weird and unsafe.

Coasting into the corner isn’t just a strange feeling, it’s new. Ken has to engage his conscious mind to do it. The subconscious mind can process information 500,000 times faster than the conscious mind. Think about the scale of that for a second. Actually, don’t think about that; if you have to think, you’re processing power goes down by magnitudes.

And this is why an intermediate rider doing this drill is faster. Intermediate riders have too much on their minds, and nothing has been pushed to the subconscious yet. They are thinking their way into the corner: Brake, blip-shift, trail brakes, tip in, body position, weight balance, roll throttle, etc. The fewer things they can think about, the better they get at executing everything else.

As they say, smooth is fast, and that’s the other reason the no brakes drill is faster than it should be. There is no braking that’s smoother than air braking. There is no downshifting technique that’s smoother than the not-shifting technique. There’s no acceleration that’s smoother than being in too tall of a gear. The end result is that 4th gear no brakes on a motorcycle results in a smoother and faster corner for the intermediate rider.

But not for riders that are very advanced, because not-braking takes more mindshare than braking. You can see this in Ken’s vMins. His mid-corner speeds are lower everywhere compared to when he’s braking, and that shouldn’t be the case; mid corner has no braking or accelerating in it. He’s thinking his way into the corner, and losing speed because of it.

Now this was the first time Ken did this drill. If he’d done this 1000 times, as I’m sure Keith Code has, then Ken’s vMins would be the same or higher than when using the brakes. He may not believe it, but the law of physics says so.

I’ve already described the reasons that trailbraking is more effective on a bike than on a car, and how feel is perhaps the most important variable when you have a contact patch that’s smaller than a credit card. But there’s yet another difference between cars and bikes, which is how a motorcycle steers.

Motorcycle tires aren’t flat across the tread surface like a car tire. Turning on a bike is accomplished by leaning the tire onto the curved profile of the tire carcass. Ergo, a tire with a more triangular profile falls into a turn quickly, while a tire with a more rounded profile, takes more effort to turn. But there isn’t a lot of scrubbing of the tire surface, and therefore, turning doesn’t slow a bike much.

Conversely, on a car, the front tires turn by scrubbing and this reduces speed a lot. It also gives the driver a lot of feedback through the steering wheel, making it heavier to turn. Motorcycle riders can also feel trailbraking as a a waggle through the bars, but they don’t get the dramatic slowing down that you get when steering in a car, and this is a significant difference between cars and bikes.

Let me show you what I mean.

Pineview Run, no-brakes drill

In the following speed trace, both drivers are in the same car (Miata) on the same tires (Hankook RS4). The red line is an intermediate driver, braking and shifting, and trying his hardest to impress his instructor. The blue line is the instructor (me), doing the 3rd gear no brakes drill (3GNB). I also put up the latG trace so you can see we have the same amount of peak grip, but we use it differently.

Red student, Blue instructor.

You can see from the steepness of the upward slopes that the red driver is using 2nd gear a few times, while I’m in 3rd gear the whole time. Likewise, his deceleration slopes are very steep, and mine are gradual, because I’m air-braking. But if you look at the very end of the deceleration zone, it looks like I’m braking or in some cases, even trailbraking. I swear I’m not.

What you’re seeing is nothing more than me increasing steering angle towards the apex, but it results in a lot of deceleration, and grip, and feel, right where it matters most. If you look at the data, you can see the intermediate driver at this point of corner entry often has less deceleration than I do, even though he’s on the brakes. Crazy, right?

In the end, my ability to be smooth and carry entry speed into the mid-corner is more important than any amount of braking and shifting, and so I go two seconds faster than my student. Let that sink in.

But don’t take this to mean the no-brakes drill is the fast way around the track. Beating up on intermediate drivers is easy, so let’s see how I compare, as Bad Brains would say it, I against I.

In the following speed trace, the blue lines are the same 3GNB lap I did against the student. Contrast that with the green line, which is me braking and shifting. I’ve added longG to the middle of the graph so we can see just how much more braking and accelerating I’m doing, it’s a ton.

Blue 3rd gear no brakes, Green brakes and shifting.

In the speed trace, you’ll notice that I’m getting down to the same vMins in most corners, but sometimes it’s difficult to improve on a no-brakes vMin. The reasons for that are A) smooth is fast, and B) sometimes it’s important to sacrifice maximum cornering grip to rotate the car early in the corner, so that you can get to full throttle earlier.

The result is that I’m 5 seconds faster. In reality, the no brakes drill is quite slow. This is a short track only 1 mile long, but it has a lot of corners, and on most tracks the difference is usually around 6 seconds or so. I obviously don’t teach the no-brakes drill because it’s the fastest way around the track, I teach it because it’s the foundation of performance driving.

A skid pad No-brakes is the foundation of performance driving

Is the no-brakes drill the foundation of performance driving? Or is a skid pad?

It’s hard to argue the incredible value of a skid pad. This is the best way to learn how to drive the limit of lateral grip. Skip Barber taught this for many years at Lime Rock Park, and if you watch this old video (skip ahead to 15 minutes), you’ll see that the skid pad was how they taught both limit driving and car control.

The skid pad makes it easy; hold the wheel so that you’re turning at a constant angle, go faster and faster, and you’ll find the limit of lateral grip. And then you’ll push harder and go over it. And then recover. And then go over. And recover. Again and again and again. A skid pad is the best way to find the limit, input that sensory information into your brain and butt for later retrieval, and train muscle memory for recovery.

Once you can regularly find and stay at the limit, you can experiment with limit steering. Most people start with the gateway drug, lift-throttle oversteer (LTO).

LTO is exactly what it sounds like; when you’re cornering at the limit, lift your foot off the throttle for a second, and the weight transfers forward, giving the front tires more grip. This in turn makes the rear end have less grip, so the car oversteers. You’d want to practice this many times on a skid pad, rotating the car just by interrupting the throttle.

After LTO you might practice holding oversteer into a drift because A) that’s super fun, and B) it’s a tool in your toolbox. After drifting, maybe you practice fully pivoting the car so that it spins. Because spin recovery is another important skill.

But you’d also want to practice inducing understeer by adding too much throttle too soon. That’s another important skill, for dealing with a loose car, driving in mixed conditions, or pushing understeer to the exit in an increasing radius turn.

After doing all of these experiments, you come to the realization that when the car is at the limit, you can steer with your feet and control speed with your hands! And now you’ve gone from a person who drives a fast car to someone who drives a car fast. Thank you skid pad.

But a skid pad isn’t always the answer.

  • Most of us don’t have access to a skid pad. I daresay it’s cheaper and easier to find track time than it is a skid pad.
  • Only one person can use it at a time. If you’re teaching a class of students, you have to rotate everyone through. Each student might need 15 minutes, half an hour, or half a day to get comfortable finding the limit and experimenting with what they can do there.

So if you don’t have a skid pad, what can you do? Simply drive a track without braking or shifting! This is essentially the same thing you’d do on a skid pad, but do this on a track. The no brakes drill is how you can find and experiment with the cornering limit, with the added benefit that many people can share the track at the same time (provided they are all doing the same drill).

In the end, the reason the no-brakes drill is the foundation of performance driving is because we don’t all have skid pads.

I’ve worked with one HPDE group that does the no-brakes drill, but it’s only for two laps at the start session. Their heart is in the right place, but they got it wrong, wrong, wrong.

Wrong: the whole pint of the drill is to be at the limit, and you can’t do that on cold tires. Braking and accelerating is what heats up tires, and so you need a couple laps going full blat before you can do the drill.

Wrong: two laps isn’t enough time to find your visual references of where to get off the gas. And you need those just to survive this! At Ross Bentley’s Speed Secrets Academy, we set up two cones for EoA (brave and braver) so students can instantly get up to speed. Otherwise they would spend the whole session identifying and remembering references, rather than driving and experimenting at the limit.

Wrong: they do no brakes at Watkins Glen, which is not an appropriate track for this drill. The straights are too long and the walls are too close. The best tracks for this drill are low speed, long corners, and lots of runoff. You know, like a skid pad.

I’d also say this drill isn’t for absolute novices. Right seat instruction is still important for making sure the driver has the right seating position, ergos, and can get around the track comfortably.

And as we saw with Ken, expert level riders (and perhaps drivers) may not get anything out of this drill. But that leaves the majority of people in the middle, who will truly benefit from setting a solid foundation for their performance driving.

So why is the limit higher?

I want to delve into one more thing that I’ve kind of touched on here, but haven’t explained yet. It’s the answer to the question, “why is the cornering limit higher in the no-brakes drill?”

The reason is, because this drill allows you to easily set the ideal entry speed for the highest possible mid-corner speed (vMin). Smooth is fast, and not upsetting the vehicle with any changes in speed means the tires can do all of their work in the lateral direction.

Does that make sense? Perhaps a better way to explain this is what happens when your entry speed is too low.

When you come into a corner too slow, your subconscious mind will make you add throttle. It’s a natural and almost unavoidable consequence of arriving at the corner too slowly. When you change speed in the corner, you create an artificially lower limit. This is because tires can accelerate, brake, or corner, and now you’ve asked the tire to sacrifice some cornering for acceleration, and so the limit is now lower.

The result of adding gas with an artificially lower limit is usually understeer. The weight has shifted off the front tires, and so the car pushes to the outside of the turn. I’d hazard a guess that 90% of people that complain about their car understeering are arriving at the corner too slowly.

The other thing that happens when you enter under the limit is oversteer. The tires were already being used for cornering, so they don’t have as much grip for acceleration, and it’s not that difficult to add too much throttle and lose rear traction.

In the end, both understeer and oversteer are the result of an artificially induced lower cornering limit, which is because the driver didn’t set the ideal entry speed. Which is why not braking, using a taller gear, longer and lighter braking, and other similar strategies that focus on maintaining momentum result in faster lap times. Lap times comes from lateral grip. But that’s a story for another time.

Getting back to Ken Hill

If there’s one thing I’m taking away from Ken’s experience with the no-brakes drill, is that it made him uncomfortable. I love that.

If you can execute something with 100% ability and confidence, then you’re not learning anything. You have to stretch your abilities and get uncomfortable in order to learn; that’s where the growth is.

I also think Ken is beating himself up too much. Given the differences between trailbraking on a bike versus a car, plus the fact that you can’t slow a bike much by steering, and the fact that Ken had to use his conscious brain for corner entry, I’m pretty impressed with his 10 second delta when not using the brakes.

Ken instructs mostly on bikes, but also in cars. In a car, I bet this drill would have gone better, and that 10 seconds would be more like 6 seconds. Perhaps his lack of comfort might even be reframed as a good thing. So here’s an open invitation to Ken:

Ken, come to Pineview Run as my guest, drive my Veloster N (it’s not that different from your son’s Elantra N), and do the no-brakes drill for a few sessions. Compare your data with and without brakes (we can be Race Studio 2 buddies), and see what happens to your vMins. We can both write about the conclusions on our respective blogs, and give the readers more information on the no brakes drill.

I’ll try not to have a fixed mindset about the result, but it won’t surprise me if you find that the no-brakes drill is the foundation of performance driving!

Mando ECS10 for Veloster N

The Veloster N has electronically controlled shocks that dictate how the car rides in normal driving situations, and then changes the damping automagically whenever the system detects the need to do so. It’s a sophisticated system that allows the car to have both Jekyll and Hyde personalities, without the driver ever being aware that this transformation is happening instantaneously, behind the scenes.

This split personality has three pre-programmed modes, which are selected by using the different drive modes on the steering wheel. Or if you go into N Custom mode, you can choose the suspension setting you want in that mode, and save it. The three modes are:

  • Normal – This setting is mostly Jekyll, and works great for everyday driving. But when the car detects a handling event, there’s enough Hyde personality to compensate. This is my preferred mode on a wet or bumpy track.
  • Sport – This is quite a bit firmer, and so I don’t use this on the street. But it’s a good setting for both Jekyll and Hyde, as long as you have a smooth and dry track.
  • Sport+ – At this setting, Dr Jekyll is an ornery pain in the ass, and My Hyde is an unpredictable and dangerous monster. I never use this, it’s awful.

In essence, the system gives you a three way switch. But since the shocks are controlled electronically, it makes sense that you could have the equivalent of a dimmer switch instead. This way you could set the firmness anywhere you want. For example, I’d like one mode that’s softer than the Normal. My daily driving includes many potholes, recessed manhole covers, potholes, bad pavement, and more potholes.

I’d also like a track-only mode that allows me to tune the suspension somewhere in between Normal and Sport. I also want to adjust the front and rear shocks independently, because on a FWD car, setting the rear shocks a bit firmer can help a lot with rotation.

The Mando ECS10 suspension controller allows you to do exactly that. It’s essentially a Bluetooth potentiometer that allows you to set the suspension softer, firmer, or anywhere in between. More importantly, you can set the front and rear independently. And in Advanced mode, you can even set the damping at different speeds!

Installation

It took me about an hour to install it, but it’s really a 30 minute job. You need to remove the steering wheel cowl, unplug a harness and plug in a piggy back harness that goes into the Mando brain unit.

The Mando has one wire that needs power, and so you’ll need to provide a fuse doubler for that. I jumped the interior light fuse, but there are plenty of candidates in the fuse box. Once it’s hooked up, you’ll see a green light indicating the unit is on. I mounted the Mando inside the fusebox area with some zip ties; it’s completely out of sight.

You access the ECS10 using a Bluetooth phone app. The app is a little quirky the first time you use it, it keeps saying that it’s not connected or some such. But be patient and you’ll figure it out, it’s just like most motorsports apps in this way.

How it works

Once in the app, the controller allows you change the settings for Ride and Handling. This is exactly what the shocks were doing all along, but now you have precise control over how much Jekyll and how much Hyde.

  • Ride is the normal driving mode. It’s active whenever there are no Handling events.
  • Handling mode is triggered by an event. This could be hard acceleration or braking, changes in steering angle or speed, changes in yaw, swilling a potion, etc. Out comes My Hyde.

The shocks go into Handling mode in milliseconds whenever one of those events is detected. It’s not clear on what triggers going back to Ride mode, perhaps just an interval of time with no more Handling events.

In both Ride and Handling modes, only the low-speed compression damping is adjusted. This doesn’t mean low vehicle speed; it means the shock has a single curve for damping. A dual-adjustable shock would have more sophisticated digressive damping, with low and high speed curves that absorb sharp impacts like curbing differently.

But the shocks aren’t that sophisticated, and so while we don’t get two damping curves, we do get to control the compression damping over two driving situations, normal (ride) and sporty (handling).

The controller allows you to set the compression from 0 to 100 for both Ride and Handling. Hereafter I’m going to refer to these numerical settings as percentages, because these go from 0 to 100. But 0% is not a blown shock absorber and 100% is not locked out suspension. These are just a range of numbers based on who knows what, and I’m calling it a percentage.

Pre-programmed settings

The Mando ECS10 comes with three pre-programmed modes. Although the names are similar to the Veloster’s suspension menu, I don’t know for sure if the settings within these modes are exactly the same.

  • Comfort – I haven’t tested this vs Normal mode, as I made my own custom mode that’s as soft as it goes.
  • Sport – I tried this once, it seemed similar to Sport mode in the Veloster, but I didn’t evaluate this much considering there are custom settings available, and that’s the whole point of the ECS10 controller.
  • Sport+ – The Veloster’s Sport+ mode is useless and dare I say, dangerous. So I avoided this mode altogether in the Mando; once bitten, twice shy.
You can’t adjust the pre-programmed modes.

Custom settings

In addition to the pre-programmed modes, there are three user configurable custom settings. This is where the fun (and confusion) begins.

Luckily a user on the Veloster N forum who goes by ProjectVeloN went through an exhaustive process to determine what the Ride settings control (see parts 1, 2, 3.) He did this street driving, not on a race track, but the data and insights were still very valuable. Generally he found the following.

  • Changes at the lower end of the scale were more significant. So going from 10% to 20% was a larger difference than going from 60% to 70%.
  • He found that the rear shocks should be set slightly stiffer than the front: If the front Ride setting is 10% or less, multiply rear by 1.5; For front in the 10-20% range, multiply rear by 1.3-1.4; For front 20-30%, multiply rear by 1.2-1.3.

With that information, I started to experiment both on the street and on the track. I set the Ride to the following:

  • F0%, R5% – This was too floaty for anything but street driving, but what a difference! More on this later.
  • F10%, R15% – Feels too soft on track, and I preferred it softer still on the street.
  • F20%, R25%: Still not stiff enough for track work.

For Handling events, I started with 60F, 80R, and then gradually softened both ends.

  • F60%, R80% – Pretty terrible.
  • F40%, R55% – Better, but needing fine tuning.
  • F35%, R50% – Good for a bumpy tracks or rain.

My custom settings

You can save your custom settings and give them a descriptive name; I went with Buick, Track, and Rain.

My three custom modes.
  • Buick – This is my daily mode (I don’t daily this car, but when I drive it around town, this is the setting I use).
  • Track – My track mode for dry conditions.
  • Rain – This is for driving on a wet race track, not on the street, where I always use Buick.

Buick

My philosophy for this setting was to make the car as plush as possible. I don’t foresee needing any handling events in this mode, but just in case I need to run from the cops, I changed the handling to base track settings.

Soft is wonderful.
  1. Mode: Basic
  2. Ride: Front 0%, Rear 5%. I’ve tried the rear at full soft as well, but I can’t tell much difference.
  3. Handling: Front 30%, Rear 50%. This is an all-purpose track setting, which probably (hopefully) won’t be triggered during street driving.

Rain

My philosophy for this setting was to make the car as predictable as possible. Since I would only be using this on a race track, I could set the Ride and Handling settings to be identical. This should (in theory) keep the car from behaving differently when it kicks into a handling event.

  1. Mode: Basic
  2. Ride and Handling: Front 35%, Rear 50%.
For wet or bumpy tracks, both Ride and Handling are set the same.

Track (basic)

Before I got the Mando I used Normal mode for wet weather and Sport for dry and smooth tracks (Watkins Glen). For dry tracks with some undulations (Pineview, NYST), I flip-flopped between Normal and Sport without a clear indicator of which was better.

With the Mando I began to experiment a lot more, but I still haven’t figured out exactly what I like, other than a firmer rear. My Rain setting is honestly quite good all around. Bumping up both ends by 5% in the dry work great, but I haven’t found a full stiff setting that I like.

Track (advanced)

Advanced mode allows you to change the damping at different speeds. I don’t have enough data to say that the Advanced mode is better than Basic, but it surely has potential. Here’s how Advanced differs.

  • You define different speed zones on a chart (see image).
  • You can then set the compression damping at each speed, both front and rear, for both ride and handling.

This means you could do something like set front compression to 40% at 50 kph, and then at and 55 kph it bumps up to 50% front, and then at 60 kph it goes back down to 40% again. I don’t know why someone would do that, but it’s possible.

A better approach might be to set a low-speed zone where the front is medium-soft, say 35%, and the rear is much harder at like 60%. At lower speeds, you want the car to pivot more, and the imbalance in front/rear compression should help that.

Similarly, you might define a medium-speed zone where most of the corners are, say around 100 kph. At this speed you ramp up the compression of the front and rear, but more front, to gain some predictability in turn-in. Because you want balanced handling for the average corner, you set the rear to be just more than the front.

Finally you set a high-speed zone where the front and rear compression are both a little softer. This is so you don’t upset the chassis at high speed, or some such logic. This is depicted below.

Front

The previous logic might make sense for defining three speed zones, but the ECS10 allows you to set five different speeds. These are completely custom, you can set them anywhere you want on the graph.

Rear

A neat usecase for this would be setting the suspension up for basic track work, but there’s one corner, like a bumpy fast kink or bit of bit curbing you hit at a particular speed, and you soften the suspension for that one event (speed). You could go pretty far into the weeds with this shit, fine-tuning the suspension for different tracks and specific corners, with a log book for every track.

Conclusion

If you daily your Veloster N (or Kona N) on shitty roads, the Mando ECS10 might be the best modification you can make. It has transformed my car from a being uncomfortably stiff to acceptably compliant. The change is more significant than going from 235/35R19 tires on OE wheels to 235/40R18 tires on lightweight wheels. Combine the Mando with the increased sidewall height and it’s like a totally different car.

On the race track, the Mando has allowed me to unlock much better handling balance, even just using the Basic settings. My suspension is otherwise completely stock, and the car handles just incredibly, with laugh-out-loud four-wheel drifts.

As for the Advanced settings, I’m still on the fence. Having the ability to control damping at different speeds sounds incredible, but is the complexity really worth it? I’m not sure yet.

I don’t know how the ECS10 would handle things like lowering springs, stiffer spring rates, sway bars, and other seasonings, but I can imagine the ability to tune all of those things together with the Advanced damping options could get very rewarding. And very complex.

Although this also reminds me of my youth as a twenty something living in Seattle. I was the guitarist in a punk/grunge band playing a Gibson Les Paul through a vintage Fender Bassman head. The Fender had a nice warm sound, to which I added a Rat rack-mount distortion pedal with three options (A, B, and stacking A+B). This gave me four different voicing options: clean, bluesy, sludge, and heavier than fucking dinosaurs.

Later I got a Mesa Boogie Studio amp with switchable channels, preamp inputs (for the Rat), and a built-in graphic EQ. There were so many good sounds coming out of that thing that I could never really settle on what I liked. I was like the proverbial donkey that starves to death deciding between two piles of hay. Except there were 10 piles of hay. A couple years later I sold the Boogie and kept the Bassman.

Maybe the Mando’s Advanced mode is like the Mesa Boogie? I don’t know yet, but being able to set five different speeds of my choosing, and then front and rear and ride and handling at each speed… well it’s going to take a lot of experimenting to get everything out of this. I’ll certainly document this journey, but I won’t be surprised if I wind up with a track mode that’s 35% front, 50% rear, at all speeds.

But honestly, the Buick mode is reason enough.
